CMM Γέφυρας Zenith 3

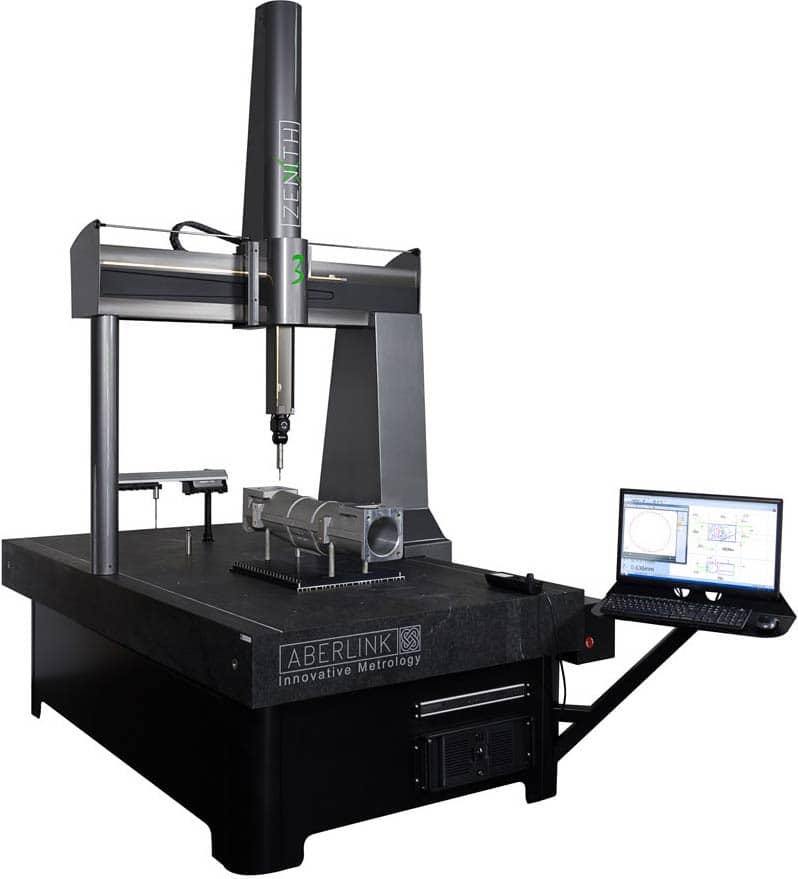

Zenith 3 CNC CMM

Affordable large precision measurements

The Zenith 3 CNC CMM is the result of a design evolution of the award-winning Zenith too range of machines, taking into account over 20 years of CMM design experience. Many of the design improvements revolve around the right leg of the machine, which has been modelled on the hugely successful Azimuth machine.

The bridge and all moving parts are light and this, combined with superior design, means that the Zenith 3 has low inertia and therefore optimal acceleration characteristics. The improved Zenith is fast, minimising inspection times. Greater air bearing separation results in greater stiffness, and so has improved the accuracy significantly. The first term error for this new model is more than a micron better than the Zenith too.

All of this comes with no cost penalty: The Zenith 3 CMM is the same hugely competitive price that its predecessor was famed for, making large-scale CMM measurements not only simple, but affordable.

changers logo
  • Aberlink’s revolutionary easy-to-use measurement software
  • Shortest learning curve of any equivalent system – 1 day without prior CMM experience
  • Smallest overall footprint of any comparable size CMM
  • Choice of Y axis sizes ranging from 1000mm to 3000mm
  • Suitable for the workshop environment
  • Protection from environmental vibrations as standard
  • Optimised friction free air bearings, all aluminium bridge and granite table
  • CMM Touch Screen Joystick supplied as standard
  • Free stylus change rack with every motorised probe head upgrade
  • Aberlink 3D measurement software for touch probe feature inspection
  • Windows based controller, machine controller card and peripherals
  • Steel CMM workbench with fixed monitor arm or control cabinet
  • Renishaw TP8 manual indexing probe head and integrated probe
  • Aberlink probe stylus kit
  • Aberlink Ø19mm sphere CMM requalification kit
  • User training course – up to 4 trainees and software user guide
  • 12 months full parts and labour warranty
  • Free telephone helpdesk support
  • Free software upgrades – no maintenance fees or contracts
Machine options
  • Automatic Temperature Compensation
  • CCD Camera System
  • Collimated Back Light
  • Dual Monitor
Common Probe Options

The Zenith 3 can be supplied with any Renishaw touch trigger probe and probe head.

  • RTP20
  • PH10T (w/TP20, TP200)
  • PH20
  • PH10M (w/SP25)
  • PH6M (w/SP25)
Axis Travel (mm)
X 1000 Y 1000, 1500, 2000, 2500, 3000 Z 600, 800
Overall Size (mm)
X 1520 Y 1700, 2200, 2700, 3200, 3700 Z 2500, 2900
*Volumetric Accuracy
TP20 (2.7 + 0.4L/100) µm TP200 (2.6 + 0.4L/100) µm SP25M (2.4 + 0.4L/100) µm
Scale Resolution
0.5µm
**Optimum Temp Range
18 - 22°C
Operational Temp Range
0 - 45°C
Table
Solid granite
Table Load Capacity
1500kg as standard Options up to 4400kg
Max. Velocity Vector
600mm/sec
Max. Acceleration Vector
600mm/sec²
Air Consumption
50 l/min (1.8 cfm)
Required Air Pressure
4 bar (60 psi)

*Maximum Permissible Error MPEE according to 10360-2, 2009 within the thermal limits defined for optimum temperature range.
**Installation environmental thermal limits: Rate of change <1°C/hr and <2°C/24hr. Temperature gradient <1°C/m

CMM Γέφυρας

Azimuth CNC CMM

From strength to strength

As CMMs get larger, it is not simply a case of scaling up the design of smaller models. The stiffness of the structure is critical, but weight must also be kept to a minimum. The Azimuth CMM is not only Aberlink’s largest in their range of CMM products, but it is the culmination of over twenty years experience and excellence in the design and manufacture of innovative metrology equipment incorporating the very latest materials technology.

The revolutionary bridge of the Azimuth incorporates aluminium honeycomb sheets developed for use in Formula One and the aerospace industry. The remarkable stiffness to weight ratio that this provides gives the Azimuth an edge in both performance and speed. For a machine of this size, the Azimuth is not only fast but extremely accurate. The drive systems designed for the Azimuth offer simplicity and reliability and the novel system used on the Y axis ensures that there is no degradation of performance across the full range of machine sizes offered up to 3m.

A big machine should also be able to measure a heavy component and this is another area where Aberlink has applied innovative thinking. Rather than simply increasing the depth of the granite table, which adds huge cost and weight to the machine, we offer a specially designed load plate to sit on the granite base. This plate can accept up to a six-tonne load which will then be transmitted directly through the feet of the machine bench directly to the floor, meaning no loss of metrology performance whatsoever.

changers logo
  • Aberlink’s revolutionary easy-to-use measurement software
  • Shortest learning curve of any equivalent system – 1 day without prior CMM experience
  • Capable of measuring parts up to 6000kg in weight
  • Choice of Y-axis sizes ranging from 1000mm to 3000mm
  • 0.0001mm linear encoders for superior accuracy
  • Self-contained drive system ensures excellent performance over the entire measuring volume
  • Anti-vibration mounts as standard
  • CMM Touch Screen Joystick supplied as standard
  • Free stylus change rack with every motorised probe head upgrade
  • Aberlink 3D measurement software for touch probe feature inspection
  • Windows based controller, machine controller card and peripherals
  • Steel CMM workbench with control cabinet
  • Renishaw TP8 manual indexing probe head and integrated probe
  • Aberlink probe stylus kit
  • Aberlink Ø19mm sphere CMM requalification kit
  • User training course – up to 4 trainees and software user guide
  • 12 months full parts and labour warranty
  • Free telephone helpdesk support
  • Free software upgrades – no maintenance fees or contracts
Machine options
  • Automatic Temperature Compensation
  • CCD Camera System
  • Collimated Back Light
  • Load plate for loads up to 6000kg
  • Dual Monitor
Common Probe Options

The Azimuth too can be supplied with any Renishaw touch trigger probe and probe head.

  • PH10T (w/TP20, TP200)
  • PH20
  • PH10M (w/SP25)
  • PH6M (w/SP25)
Axis Travel (mm)
X 1200 Y 1000, 1500, 2000, 2500, 3000 Z 1000
Overall Size (mm)
X 1940 Y 2000, 2500, 3000, 3500, 4000 Z 3595
*Volumetric Accuracy
TP20 (2.9 + 0.4L/100) µm TP200 (2.8 + 0.4L/100) µm SP25M (2.6 + 0.4L/100) µm
Scale Resolution
0.1µm
**Optimum Temp Range
18 - 22°C
Operational Temp Range
0 - 45°C
Table
Solid granite
Table Load Capacity
1500kg as standard Options up to 6000kg
Max. Velocity Vector
650mm/sec
Max. Acceleration Vector
850mm/sec²
Air Consumption
50 l/min (1.8 cfm)
Required Air Pressure
4 bar (60 psi)

*Maximum Permissible Error MPEE according to 10360-2, 2009 within the thermal limits defined for optimum temperature range.
**Installation environmental thermal limits: Rate of change <1°C/hr and <2°C/24hr. Temperature gradient <1°C/m

CMM Γέφυρας

Axiom too CNC CMM

The complete shop floor inspection system

Fast, accurate and reliable, the Axiom too CNC CMM comes in four different sizes with Y axis travel up to 1500mm. The Axiom too can be used with touch trigger probe, continuous contact scanning probe or with Aberlink’s revolutionary non-contact camera system.

The all aluminium bridge structure not only ensures that the Axiom too has low inertia and high acceleration to get the job done quickly, but also that the temperature of the machine rapidly follows the temperature of the room, ideal when the CMM is not housed in a controlled environment. Temperature compensation in the software reports results as if they had been measured at 20°C/68°F

The standard high-tech granite and aluminium table, originally developed for the optics industry, provides fantastic natural damping of high frequency vibration and the granite Y rail allows pre-loading of the bridge air bearings in both directions for superior accuracy.

A manual version is also available for more information view the catalogue
changers logo
  • Aberlink’s revolutionary easy-to-use measurement software
  • Shortest learning curve of any equivalent system – 1 day without prior CMM experience
  • Smallest overall footprint of any comparable size CMM
  • Choice of Y axis sizes ranging from 600mm to 1500mm
  • Suitable for the workshop environment
  • Protection from environmental vibrations as standard
  • Optimised friction free air bearings, all aluminium bridge and granite table
  • Free stylus change rack with every motorised probe head upgrade
  • Aberlink 3D measurement software for touch probe feature inspection
  • Windows based controller, machine controller card and peripherals
  • Steel CMM workbench with fixed keyboard shelf or monitor arm
  • Touch sensitive 3D joystick and variable CMM speed control
  • Renishaw TP8 manual indexing probe head and integrated probe
  • Aberlink probe stylus kit
  • Aberlink Ø19mm sphere CMM requalification kit
  • User training course – up to 4 trainees and software user guide
  • 12 months full parts and labour warranty
  • Free telephone helpdesk support
  • Free software upgrades – no maintenance fees or contracts
Machine options
  • Automatic Temperature Compensation
  • Touch Screen Joystick
  • CCD Camera System
  • Collimated Back Light
  • Dual Monitor
Common Probe Options

The Axiom too can be supplied with any Renishaw touch trigger probe and probe head.

  • MH20i
  • RTP20
  • PH10T (w/TP20, TP200)
  • PH20
  • PH10M (w/SP25)
  • PH6M (w/SP25)
Axis Travel (mm)
X 640 Y 600, 900, 1200, 1500 Z 500
Overall Size (mm)
X 1130 Y 900, 1200, 1500, 1800 Z 2320
*Volumetric Accuracy
TP20 (2.4 + 0.4L/100) µm TP200 (2.3 + 0.4L/100) µm SP25M (2.1 + 0.4L/100) µm
Scale Resolution
0.5µm
**Optimum Temp Range
18 - 22°C
Operational Temp Range
0 - 45°C
Table
Honeycomb aluminium & granite or solid granite
Table Load Capacity
300kg (Honeycomb) or 500kg (Solid)
Max. Velocity Vector
600mm/sec
Max. Acceleration Vector
600mm/sec²
Air Consumption
50 l/min (1.8 cfm)
Required Air Pressure
4 bar (60 psi)

*Maximum Permissible Error MPEE according to 10360-2, 2009 within the thermal limits defined for optimum temperature range.
**Installation environmental thermal limits: Rate of change <1°C/hr and <2°C/24hr. Temperature gradient <1°C/m

CMM Γέφυρας

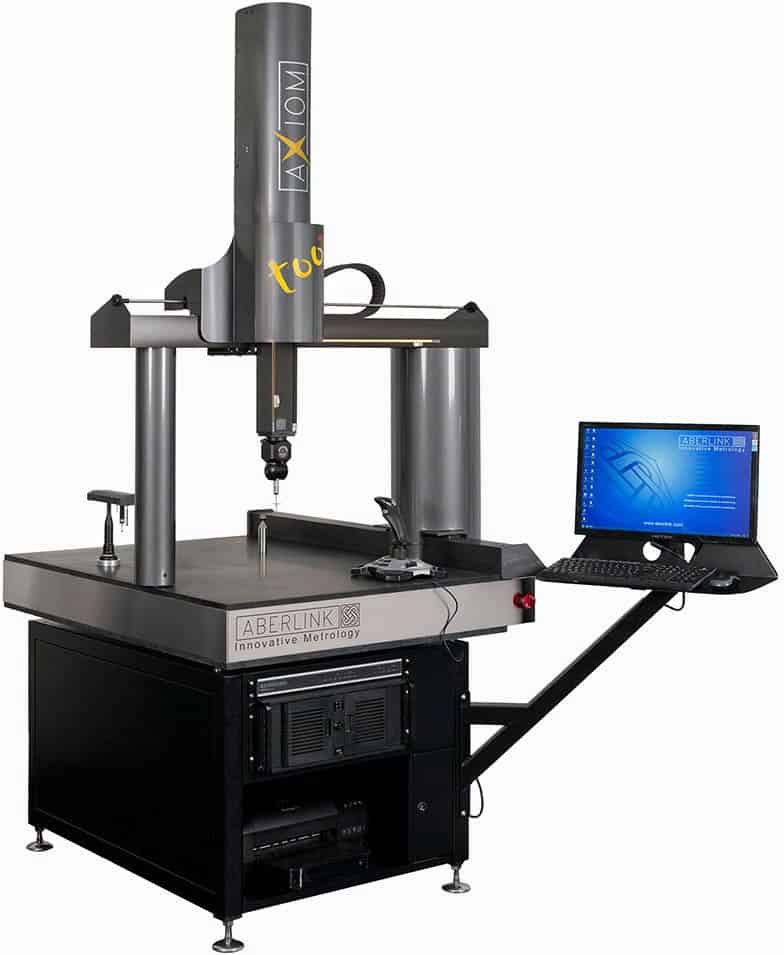

Axiom too HS CMM

High Spec Shop Floor CMM

Since 2004 the Axiom too CMM has been providing manufacturing industry with a fast and accurate solution for their measurement problems, but as ever, Aberlink are continually striving to improve the solutions which we offer. The Axiom too HS is both faster and more accurate than the standard model, and all without compromising the fantastic value for money for which Aberlink have become renowned.

Rather than using the belt drive system, the Axiom too HS incorporates drive rod technology developed on our larger machines and vision products. This allows even greater accelerations to be achieved meaning that the HS model measures approximately 20% quicker than the standard variant – ideal for high volume measurement.

The Axiom too HS also utilises 0.1µm resolution scales on each axis. Incorporated with state-of-the-art error mapping techniques this means that the HS model is the most accurate machine ever produced by Aberlink – ideal when measuring tight tolerances.

changers logo
  • Aberlink’s revolutionary easy-to-use measurement software
  • Shortest learning curve of any equivalent system – 1 day without prior CMM experience
  • Smallest overall footprint of any comparable size CMM
  • Choice of Y axis sizes ranging from 600mm to 1500mm
  • 0.0001mm linear encoders for superior accuracy
  • Zero backlash drive system for quicker acceleration and faster travel
  • Suitable for the workshop environment
  • Optimised friction free air bearings, all aluminium bridge and granite tableFree stylus change rack with every motorised probe head upgrade
  • Aberlink 3D measurement software for touch probe feature inspection
  • Windows based controller, machine controller card and peripherals
  • Steel CMM workbench with fixed keyboard shelf or monitor arm
  • Touch sensitive 3D joystick and variable CMM speed control
  • Renishaw TP8 manual indexing probe head and integrated probe
  • Aberlink probe stylus kit
  • Aberlink Ø19mm sphere CMM requalification kit
  • User training course – up to 4 trainees and software user guide
  • 12 months full parts and labour warranty
  • Free telephone helpdesk support
  • Free software upgrades – no maintenance fees or contracts
Machine options
  • Automatic Temperature Compensation
  • Touch Screen Joystick
  • CCD Camera System
  • Collimated Back Light
  • Dual Monitor
Common Probe Options

The Axiom too HS can be supplied with any Renishaw touch trigger probe and probe head.

  • MH20i
  • RTP20
  • PH10T (w/TP20, TP200)
  • PH20
  • PH10M (w/SP25)
  • PH6M (w/SP25
Axis Travel (mm)
X 640 Y 600, 900, 1200, 1500 Z 500
Overall Size (mm)
X 1130 Y 900, 1200, 1500, 1800 Z 2320
*Volumetric Accuracy
TP20 (2.1 + 0.4L/100) µm TP200 (2.0 + 0.4L/100) µm SP25M (1.8 + 0.4L/100) µm
Scale Resolution
0.1µm
**Optimum Temp Range
18 - 22°C
Operational Temp Range
0 - 45°C
Table
Honeycomb aluminium & granite or solid granite
Table Load Capacity
300kg (Honeycomb) or 500kg (Solid)
Max. Velocity Vector
866mm/sec
Max. Acceleration Vector
1200mm/sec²
Air Consumption
50 l/min (1.8 cfm)
Required Air Pressure
4 bar (60 psi)

*Maximum Permissible Error MPEE according to 10360-2, 2009 within the thermal limits defined for optimum temperature range.
**Installation environmental thermal limits: Rate of change <1°C/hr and <2°C/24hr. Temperature gradient <1°C/m

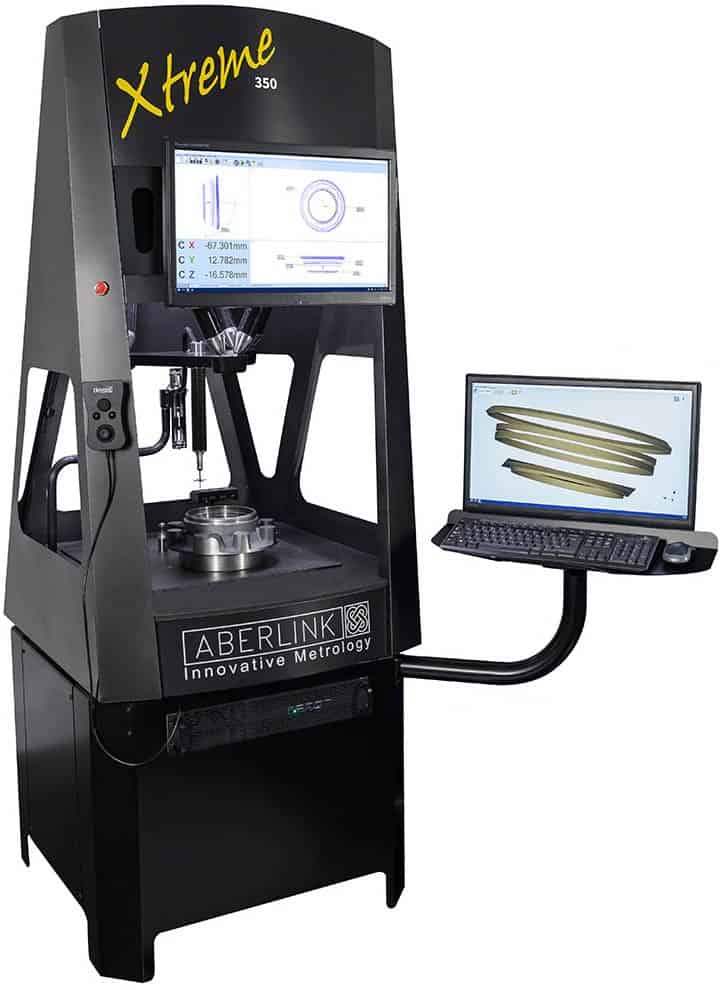

Xtreme CNC CMM

The complete shop floor inspection system

Designed using a non-Cartesian structure and utilising linear motors and mechanical bearings, as its name implies, the award-winning Xtreme CNC CMM provides a robust solution for providing precision inspection results. The unique CMM’s advantageous configuration ensures that it maintains its accuracy at very fast measurement rates and does not suffer from the accumulative inaccuracies that occur in conventional 3-axis Cartesian designs.

Now available in two sizes, the Xtreme is a self-contained inspection unit. It has no air bearings, so no requirement for compressed air – just plug it in and go. Built-in temperature control and a compact footprint allow the Xtreme to be placed wherever it is needed.

Another unique advantage of the Xtreme is that all of the struts are temperature controlled to operate above ambient air temperature. This means that the measurement accuracy is maintained even when the surrounding environment is not temperature controlled.

The Xtreme can be supplied with either a 22″ LED monitor side-mounted on an ergonomic arm or, a touch-screen monitor mounted at head height on the front panel of the machine.

  • No compressed air required – the Xtreme is ‘plug and go’
  • The Xtreme’s mechanical bearings mean that it is robust, so ideal for less than perfect environments
  • Built-in temperature control – accuracy is maintained even when ambient temperature is not controlled
  • Aberlink’s revolutionary easy-to-use measurement software
  • Shortest learning curve of any equivalent system – 1 day without prior CMM experience
  • Smallest overall footprint of any comparable size CMM
  • Aberlink 3D measurement software for touch probe feature inspection
  • Windows based controller
  • Renishaw TP20 probe system
  • Aberlink probe stylus kit
  • Aberlink Ø19mm sphere CMM requalification kit
  • User training course – up to 4 trainees and software user guide
  • 12 months full parts and labour warranty
  • Free telephone helpdesk support
  • Free software upgrades – no maintenance fees or contracts
Machine options
  • Ergonomic monitor arm or touch-screen monitor
  • Probe change rack & TP20 probe Module
  • CAD Comparison Software Module
  • CAD Programming Software Module
  • Fixture Kit
Axis Travel (mm) 350
Min linear
X 300
Y 300
Z 200
Circular
Ø359200
500
Min linear
X 400
Y 400
Z 270
Circular
Ø510270
Overall Size (mm)
X 790 Y 900 Z 2030
X 905 Y 1140 Z 2195
Volumetric Accuracy
3µm + L/250mm
Scale Resolution
0.5µm
Operational Temp Range
0 - 45°C
Table
Granite plate
Max. Velocity Vector
500mm/sec
Max. Acceleration Vector
750mm/sec²
Air Consumption
None
Required Air Pressure
Not required
