Ace Solano Blue package is an easy to use scanning solution at a competitive price. The Solano Blue laser line enables to scan most of the parts, especially the reflective ones. Ace Solano Blue scanning arm, as a portable CMM, can be used everywhere (even outdoor) for contact and non-contact measurements, due to its efficient temperature compensation.
Scanning arm – Ace Solano Blue
Portable CMM with external 3D laser scanner
Competitive solution to scan any part with any colour
Specifications
Max Speed
50,000 pts/sec
Accuracy
25µm
Laser line width
100mm
Max Frequency
90Hz
Efficient portable CMM
Scanning of reflective surfaces

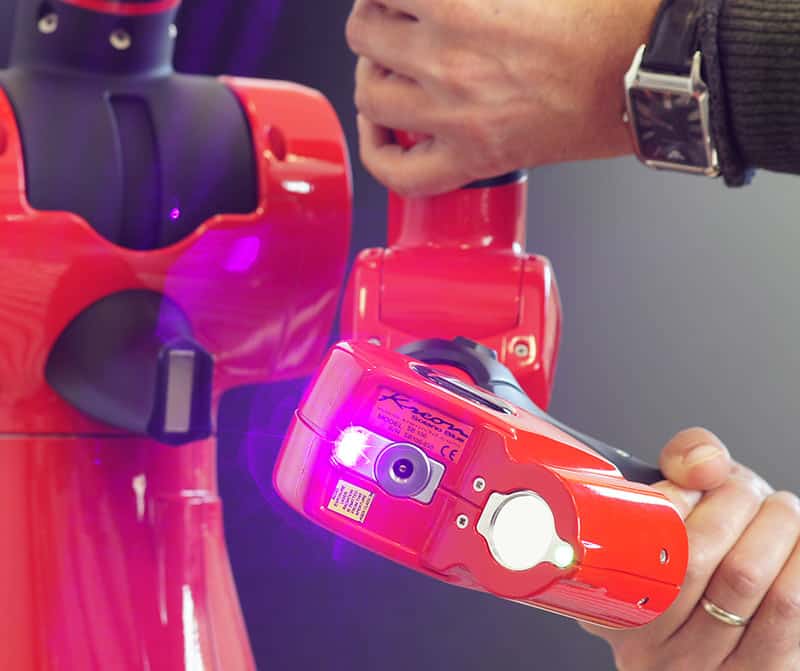

Designed with the 25 years Kreon experience, equipped with a blue laser technology, and optimized with the AQC settings, the Solano Blue has all the keys to scan easily shiny parts with carbon, chrome or black glossy materials.
Portable CMM
Thanks to temperature compensation, Ace Solano Blue can be used everywhere either in the workshop, the metrology lab or outdoor. The Wifi and the integrated battery enable to scan without any wire. Besides, the handle on the base helps to easily carry the arm.
Ease of use
Just plug and play and scan all you want. No need of complex installation with a lot of wires and settings. Ace Solano Blue with its very short learning curve is the perfect package for teams that want to be productive instantly.
Contact and non-contact measurements:
The Solano Blue scanner can be equipped with a hard probe or a touch-probe. This solution enables to scan and probe in the same measuring range, which is useful and efficient, especially for the alignment operations.
Solano Blue external scanner
3D scanner easy to use with all measuring arms
More about Solano Blue scannerAce measuring arm
The ideal portable CMM for high accuracy 3D measurement
More about Ace measuring armAce Solano Blue specifications
Scanning performance
Probing performance
Point repeatability
Point repeatability
Probing performance
Volumetric accuracy
Volumetric accuracy
ACE-7-20
0.047 mm
0.022 mm
0.032 mm
ACE-7-25
0.053 mm
0.027 mm
0.038 mm
ACE-7-30
0.066 mm
0.042 mm
0.051 mm
ACE-7-35
0.077 mm
0.054 mm
0.062 mm
ACE-7-40
0.089 mm
0.069 mm
0.074 mm
ACE-7-45
0.104 mm
0.078 mm
0.089 mm
