Driven screw nut: on the left and right
10-times magazine protected in the housing
Guiding is protected by the C-construction
Vacuum HD and T-slot surfaces available (refer to PDF link for options).

CNC Routers

Milling Machine PFH Series

The new series PFH underlines with its stability and robustness its ability to precision work. The stable X-axis of steel permits the use of HF spindles up to 12 KW.
The gantry design in the Y-axis and the driven nut in the X-and Y-axis ensure high precision and smooth running in the processing of sheet material.

Application: Milling in 3D objects from non-ferrous metals, plastic and wood forms and model as well as engravings in 2D and 3D.

Technical Information
  • Ball screw spindles, linear guidings and carriages of Bosch
  • Steel side part in C-construction
  • Covered guidings covered protect sensitive components against contamination
  • Driven screw nut in X-and Y-axis
  • 2 ball screw spindles in the Y-axis
  • X-axis: Steel girder 200 x 100 mm
Special features
  • Rack mounting
  • Ergonomic design: feet are within
  • Particularly suitable for panel processing
  • T-slot
  • Vacuum plate
  • A minimum amount of cooling
  • Available with a stepper motor or AC servo motor
  • portal Increase: 300 or 450 mm Z-axis
  • 5-axis swivel head option available
  • Software options available
  • Disk type 8 tool changer
  • Vacuum clamps

For more options and variants of CNC Routers please take a look at our catalogue.

If you have any special machine requirements let us know and we will offer a solution that meets your needs.

Small CNC Routers
Vibration free robust steel construction
T-Slot plate 15 or 20mm
Vacuum table optional

Small CNC Routers

Benchtop Milling Machines PFE Series

The PFE machines are the ideal way to start industrial production, specially developed for milling, engraving and the manufacturing of prototypes as well as for the advertising technics.
Linear guidings of Bosch and ball screw spindles in all axes ensure precise milling, the rugged steel construction ensures a vibration-free operation even at high speeds. In this price range, the profitability and efficiency make the PFE to an absolute bestseller.

Application: Milling in 3D objects from non-ferrous metal, plastic and wood forms and model as well as engravings in 2D and 3D, and prototyping

Technical Information
  • Ball screw spindles in all axis
  • Linear guidings and carriages of Bosch
  • Deliverable with a step or servo motor
  • Stable steel construction
Special features
  • Robust low vibration steel construction
  • Very economical
  • Ideal for advertising applications
  • T-slot
  • control
  • vacuum table
  • portal increase Z-axis
  • Available with a stepper motor,
    DC motor or AC servo motor

For more options and variants of CNC Routers please take a look at our catalogue.

If you have any special machine requirements let us know and we will offer a solution that meets your needs.

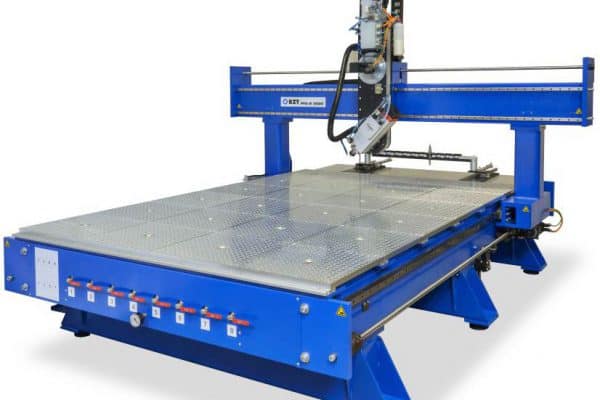

Large CNC Router
T-Slow plate and vacuum table optional
Optional 10-tool changer with housing
Stable frame construction

Large CNC Routers

Flatbed CNC machines PFG Series

Built for processing large plates, the PFG series has been developed as our customers have demanded better and better surface qualities even for largest possible panel sizes, now we build our big machines with high-precision ball screw spindles; additionally, a driven nut provides better milling results on the surface. For the high production quality guarantees the gantry design, ball screw spindles and the low vibration steel frame construction.

Applications: The PFG series CNC machines are specially designed for applications in the advertising technique for processing large sheets of plastic, light metal or wood.

Technical Information
  • Ball screw spindles, linear slides and carriage of Bosch
  • Stable steel construction
  • Driven screw nut in X-and Y-axis
  • Gantry design: 2 ball screw spindles in the Y-axis
  • Servo Drives
  • swivel head (5-axis machining) optional
Special features
  • Processing of large plates made of plastic, lightweight metal or wood
  • Vacuum table
  • T-slot plate
  • Swivel head (5-axis machining)
  • 2 x 8-time disk type tool changer
  • 10-time tool changer in the housing
  • 5 Axis option available

For more options and variants of CNC Routers please take a look at our catalogue.

If you have any special machine requirements let us know and we will offer a solution that meets your needs.

High speed CNC machine with optional 5 axis
6 Tool magazine with protective casing
Swivel head 5 axis machining optional
High-quality solid steel construction designed for high speed cutting.

High Speed CNC Machines

Precision Milling Machines PFX Series

Faster and more precise and robust! The driven nut in the X-axis provides for even better milling results. This high-performance HSC-machine (High-Speed Cutting) has especially been designed for the fast and precise processing of aluminium and also (limited)steel. The PFX-series is highly precise and thanks to its solid steel construction it is extremely buckling resistant and stable.
Thanks to its fixed portal only the table processes, so that there is the advantage that not so huge masses have to be moved and by servo technics speeds up to 30 metres per minute can be achieved.

Applications: Milling in 3D objects made of steel, non-ferrous metals, plastic and wood, forms and model well as engravings in 2D and 3D.

Technical Information
  • Linear guidings and ball screw spindles in all axes
  • Deliverable with step motor or AC-servo motor
  • With servo technics are speeds up to 30 metres per minute possible
Special features
  • High-Speed Processing
  • Applicable for Rapid Prototyping
  • Fixed portal
  • swivel head (5-axis machining) optional

Version PFX-H is the ideal CNC milling solution for precision milling the 3D objects such as milling jewellery, stamps and medals. With a wide range of accessories available such as spindles with SK 20 tool holders or a fully automatic 3D button, and a fourth high-precision Axis in servo technology available.

  • Handwheel
  • Siemens control
  • Vacuum table
  • Portal increasing Z-axis 450mm
  • Available with stepper or servo motor
  • swivel head (5-axis machining)
  • Sinumerik 802S controller
  • TNC320 Heidenhain controller
  • Machine Housing

For more options and variants of CNC Routers please take a look at our catalogue.

If you have any special machine requirements let us know and we will offer a solution that meets your needs.

Long mini cnc router

Mini CNC Routers

Small CNC machines PFG Series

The compact PFK machines have been developed for the semi-professional, industrial user, especially for milling, engraving and the manufacturing of prototypes. Thanks to the dimension of the PFK series it is also ideal for working in small workplaces. The filigree and accurate processing of your parts is guaranteed by the linear guidings of Bosch and ball screw spindles built in all axes. The PFK can be used especially for small parts such as jewellery.

Suitable for milling in 3D objects from non-ferrous metal, plastic and wood forms and model as well as engravings in 2D and 3D, and prototyping.

Technical Information
  • Ball screw spindles in all axis
  • Linear guidings and carriages of Bosch
  • Deliverable with step motor or AC-servo motor
  • Stable steel construction
Special features
  • Ideal for prototyping, jewellery design
  • Particularly suitable for long and narrow parts such as wings
  • Small required space
  • Aluminum T-slot in 15 or 20 mm
  • Frame
  • Enclosure

For more options and variants of CNC Routers please take a look at our catalogue.

If you have any special machine requirements let us know and we will offer a solution that meets your needs.

Mini CNC Router, small and compact
Entry level CNC router

Entry level CNC Routers

Small table-top CNC machines for beginners PFG Series

The ideal starter series for semi-professional use in stable frame construction. A compact table-top machine with high stiffness and low weight. An affordable solution for machining small to medium parts.
PF-P series: round guiding and 16 mm ball screw spindles in all axes – extraordinarily in this price range!
Both versions of each available with a step motor.

Suitable for Milling in 3D objects from non-ferrous metals, plastic and wood forms and model as well as engravings in 2D and 3D.

Technical Information
  • 25 mm Round guiding
  • Stable C-construction in the Z-axis
  • KTR-couplings between step motor and spindles
  • PF 1010-P and PF 1410-P: Higher stability by linear guiding in the X-axis
  • Strong step motors
Special features
  • Downwardly open construction: can be placed on workpieces
  • Lightweight, portable
  • High operating comfort, ideal for beginners
  • T-slot
  • control
  • vacuum table
  • portal increase, z-axis 250 mm travel
  • Available with stepper motor, DC motor or AC servo motor

For more options and variants of CNC Routers please take a look at our catalogue.

If you have any special machine requirements let us know and we will offer a solution that meets your needs.

CNC router for beginners
We offer comprehensive training and technical support with all for our CNC machines
