Plug and play systems that capture high-resolution 3D scans in less than a second at sub-thousandth of an inch accuracy.
Polyga Compact 3D Scanners
Desktop 3D Scanner
Versatile Across Applications

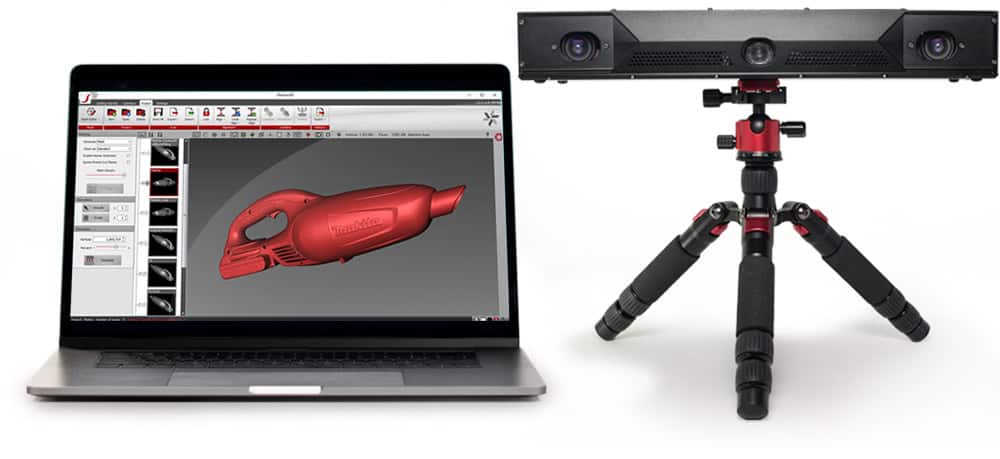

Convenient and easy to use, this professional 3D scanner is factory calibrated for accuracy to get you 3D scanning in no time.
Polyga Compact desktop 3D scanners are great for any companies, manufacturers, academic institutions, visual effect studios, and research labs that need accurate and reliable 3D scan data for visualization and measurement applications including:
- Reverse engineering
- Computer or robotic vision
- Scientific measurement and documentation
- Quality inspection
- 3D modeling
- Rapid prototyping / 3D printing
Which Compact 3D Scanner Is Right For You?
The Polyga Compact line offers a wide spectrum of 3D scanners for digitizing large to small objects into 3D models.
S1
Affordable
Capture professional-quality scans at an affordable price.
S1
Industrial
Macro 3D scanner for scanning extremely small parts.
S1
Industrial
Scan small parts in high resolution and accuracy.
S1
Industrial
3D scanning of objects about the size of a shoebox.
S1
Scan large objects
Scan medium to large parts in high resolution and accuracy.
| Model | Type | Object Size | Reference Objects | Camera | Accuracy | Points | Scan Speed | Field of View |
|---|---|---|---|---|---|---|---|---|
| S1 | Entry-level | 5 to 30 cm (2″-12″) |
Small mechanical parts, computer mice, dental molds | 2 x 1.3 megapixel (monochrome/color) |
Up to 40 microns | 1.2 million | 500 ms | 65 x 58 – 90 x 80 mm |
| C504 | Macro scanner | 0.5 to 3 cm (0.2″-1″) |
Drill bits, screws, coins, rice, seeds | 2 x 5 megapixel (monochrome) |
Up to 6 microns | 5 million | 166 ms | 13.2 x 12.1 – 15 x 13 mm |
| C506 | Scan small parts | 3 to 10 cm (1″-4″) |
Small turbine blades, PCB boards | 2 x 5 megapixel (monochrome) |
Up to 12 microns | 5 million | 333 ms | 45 x 27 – 45 x 30 mm |
| C210 | Medium sized parts | 5 to 30cm (2″-12″) |
Mechanical parts, figurines, shoes | 2 x 2 megapixel (monochrome) |
Up to 35 microns | 2 million | 250 ms | 98 x 71 – 154 x 100 mm |
| L6 | Large field of view | 20 cm to 1 m (8″-60″) |
Human body, faces, automotive parts | 2 x 3 megapixel (monochrome/color) |
Up to 80 microns | 3 million | 1200 ms | 265 x 225 – 375 x 345 mm |
Advantages
Easy to Set Up
Simply connect the Polyga Compact 3D scanner and install the included FlexScan3D software on your computer. The system is now ready for 3D scanning.
Capture 3D Scans Fast
Only minutes after setup, the Compact 3D scanners capture 3D scans with millions of 3D measurement points in under one second with high accuracy.
Intuitive To Use
With a sleek and slim build, these desktop 3D scanners make it easy to take along when travelling. Put it in your suitcase or travel case and you’re ready to go.
Take It To Go
Simply connect the Polyga Compact 3D scanner and install the included FlexScan3D software on your computer. The system is now ready for 3D scanning.

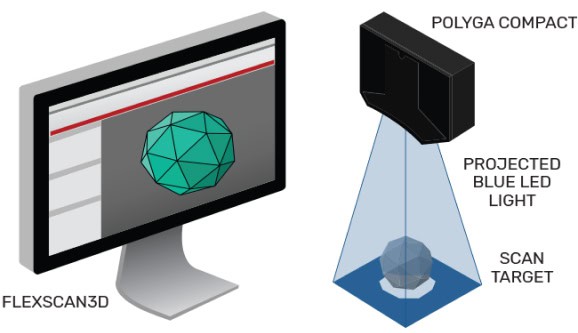

How It Works
The Polyga Compact 3D scanners take a 3D image of what it can see at one time. To create a digital model of the entire object, scans have to be taken from all angles. These components are used to capture a scan:
1. Capturing Unit: The light source (LED light) projects a series of patterns onto the scan target. The light patterns become distorted when they project onto the object’s surface. Duo cameras capture these images and send them to FlexScan3D to process the information.

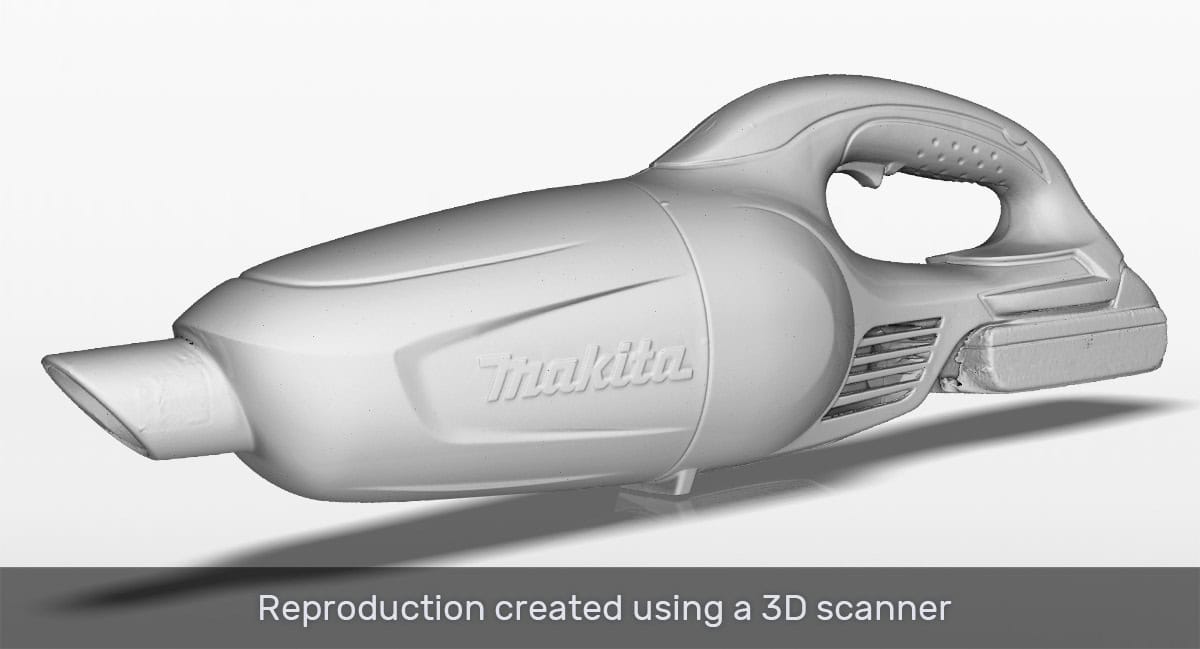

2. FlexScan3D Software: The control centre that runs the entire operation. It uses the captured images to calculate the object’s depth and surface information to create a 3D scan. FlexScan3D then cleans, merges, and stitches multiple scans together (known as post-processing) in order to create a complete digital 3D model.

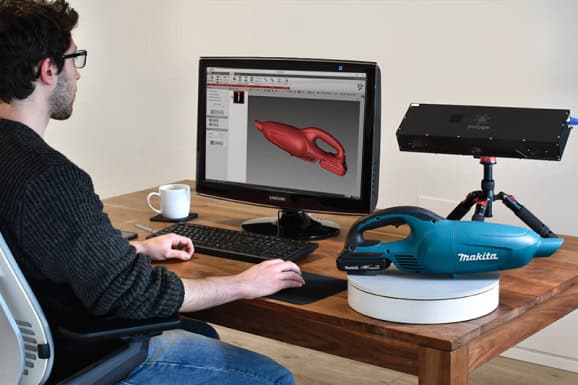

Automate The 3D Scanning Workflow
When paired with a rotary table, Polyga Compact 3D scanners produce better digital 3D models faster than doing it manually (up to 3x faster). Simply place the object on the rotary table. With a click of the button, let the system do all the work for you.
Automation is a time-saver, especially when 3D scanning similar objects in volume. Reduce manual work and get amazing results every time.

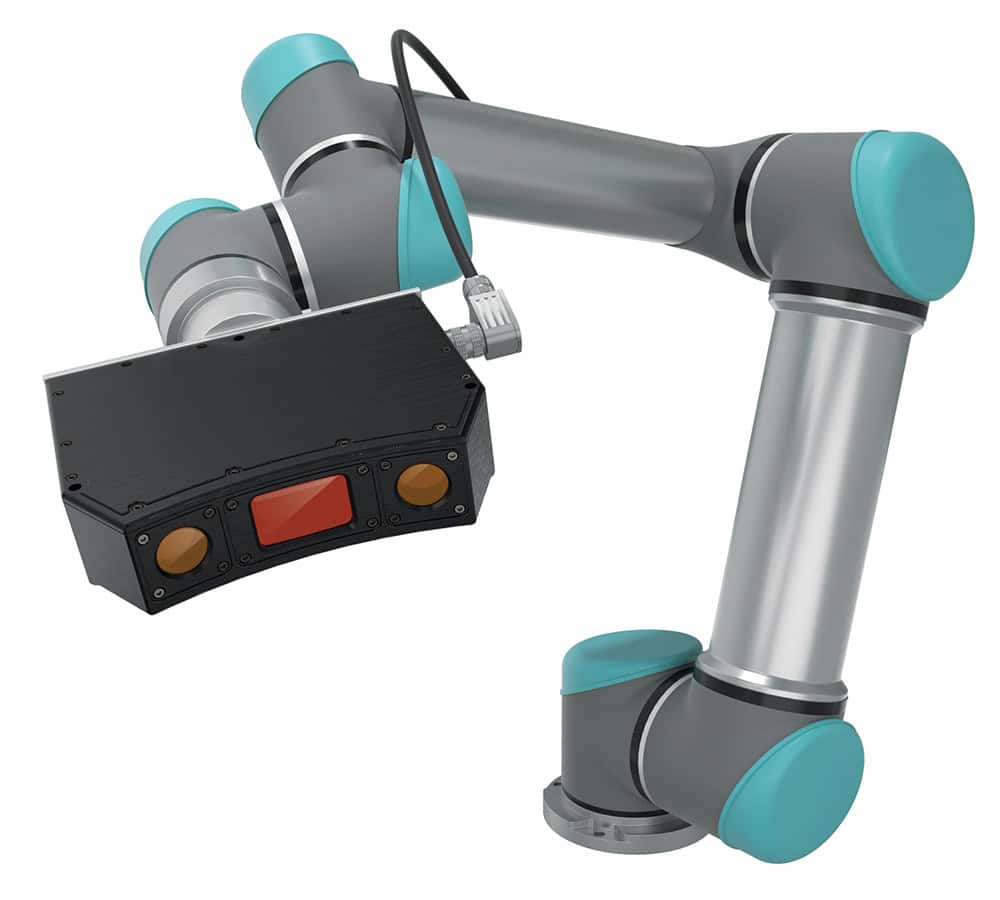

Integrate 3D Scanning into Systems or Devices
With the Polyga Compact, you can quickly add 3D scanning capabilities to your operations. Each system includes a simple-to-use software development kit (SDK) and connectivity options. The SDK is available for Windows 10 64bit, with C++/C# libraries and examples. Export the output into a variety of common output formats (PLY, OBJ, STL, ASC, FBX) to accommodate different systems with ease.
You have complete control over all aspects of the 3D modeling process to fully customize the process to your needs.
Ultimate Inspection Solution
The Compact desktop 3D scanners produce high accuracy scan results which are especially valuable for quality inspection applications. For example, the C504 is the can scan an object size of 0.5 to 3 cm with remarkable accuracy at just 6 microns!
Get all the comprehensive 3D measurement data you need in one system to eliminate product defects during the manufacturing process.
Results You Can Trust
“Throughout the years I’ve used a variety of 3D scanning solutions including photogrammetry, handheld 3D scanners, CT/microCT, and LIDAR, but my day to day ‘workhorses’ are the Polyga 3D scanners.”
Tom O’MahoneyPostdoctoral researcher at Anglia Ruskin University
Postdoctoral researcher at Anglia Ruskin University
