iQube & iQube Mini

3D Σαρωτής Ποδιών

Our iQube 3D scanners capture accurate data of your client's foot to create custom insoles that fit perfectly first time. Improve your customer experience by capturing their foot data quickly and mess free in your practice, at their home or in a retail environment.

3D Foot Scanner video cover
3d foot scanners iqube iqube mini
Overview

Digital Foot scanner

The iQube & iQube Mini foot scanners can produce high quality 3D scans of your client’s foot, a cast or a foam box impression in seconds and ready to import into your CAD solution to design accurate custom insoles. Here are some of the Features & Benefits:

Heel Capture

When scanning your client's foot, the iQube will capture the back of the heel as well as the plantar surface.

Foot Data

iQube allows you to capture your client's foot data with weight-on, weight-off and semi-weight bearing scans.

Portable

iQube and iQube mini are portable, allowing you to capture your client’s foot data wherever it is needed.

Time Saving

Reduce the lead time of producing custom insoles by capturing accurate data at the outset

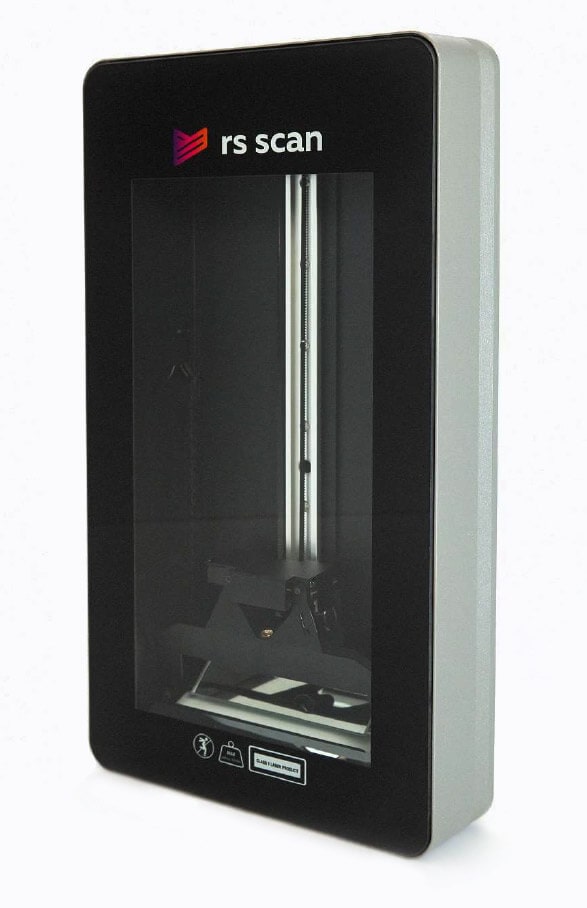

iQube Mini Foot Scanner

The iQube Mini E100 is a fast, portable & accurate 3D plantar scanner with 1 camera, whether you need to scan a foot, cast or foam box, iQube mini is able to produce high-quality 3D images in seconds saving you time whilst improving the quality of the orthotic.

Specs

  • Accuracy: +/- 1mm
  • Scanning speed: 3 seconds
  • Weight: 6 kg.
  • Dimensions: 540 x 290 x 80 mm
  • Maximum load: 200 kg.
  • Software: RSscan Footscan Essentials
  • Connection: USB 2.0

Scanning

  • Foot length & width
  • Arch height & length
  • Estimated shoe size
  • Output format: STL & picture
iqube mini portable foot scanner

iQube Foot Scanner

The iQube E500 is a fast, portable & accurate 3D plantar scanner with 5 cameras, whether you need to scan a foot, a cast or a foam box, iQube is able to produce high-quality 3D images in seconds saving you time whilst improving the quality of the orthotics.

Specs

  • Accuracy: +/- 0.4mm
  • Scanning speed: 6 seconds
  • Weight: 17 kg.
  • Dimensions: 70 x 38 x 20 cm
  • Maximum load: 200 kg.
  • Software: RSscan Footscan Essentials
  • Connection: USB 2.0

Scanning

  • Foot length & width
  • Arch height & length
  • Estimated shoe size
  • Output format: STL & picture
iqube portable foot scanner
Full weight bearing 3d foot scanner

Full Weight bearing Foot Scan

A typical full weight scan of the patient’s foot is simple and in a matter of seconds you have a digital 3D model of your patient on which to design. The iQube remains flat on the ground.

Semi weight bearing 3d foot scan

Semi Weight bearing Foot scan

A semi weight bearing scan position is advantageous for certain diagnosis of conditions and is easily adaptable for the iQube. This is simply done by extending out one of the support legs on the lid whilst the other is closed creating the angle. The iQube then locates on top of the lid with the incline ready for use.

Non weight bearing 3d foot scanner

Non weight bearing foot scan

A non weight scan when manipulating the foot requires both hands and so activating the time delayed button is ideal for when the patient is on a lying on a bed or sitting in a chair to give you time to position the foot.

Cast Scan video with 3d foot scanner

Cast Scan

Clever positioning allows the iQube to reach inside the cavity of a cast to give you a true 3D scan of a patient’s foot and converting your pre-existing records to digital.

Foam scan with 3d foot scanner

Foam Scan

With the right positioning, even deep foam boxes are possible to scan using the iQube again digitising your records and reduce complications with physical storage.

Portable 3d foot scanner

Portability

The mobile podiatrists need to be able to make home visits and the iQube can do just that. Simply secure on the lid and carry it away like a suitcase.

Full Foot 3D scanner

The tiger scan 3d full foot scanner is a high-quality 3D scanning solution designed for orthotics, footwear manufacturers and designers. The foot scanner uses 9 cameras and is suitable for scanning lasts, feet, foam boxes, hands & insoles.

Specs

  • Accuracy: +/- 0.5 mm
  • Scanning speed: 5-15 seconds
  • Weight: 26 kg.
  • Dimensions: 730 x 430 x 320 mm
  • Dimensions with handle and step: 755 x 832 x 1216 cm
  • Maximum load: 200 kg.
  • Software: RSscan Footscan Essentials
  • Connection: 1x USB 2.0

Scanning

  • Scan height above the ankle
  • 3D view and automatic calculation of the height, length & width of the foot.
  • Scan modes available from fast to high-quality.
  • Bearing, half-bearing and non-bearing scanning.
  • Output format: STL & picture.
full foot 3d scanner
