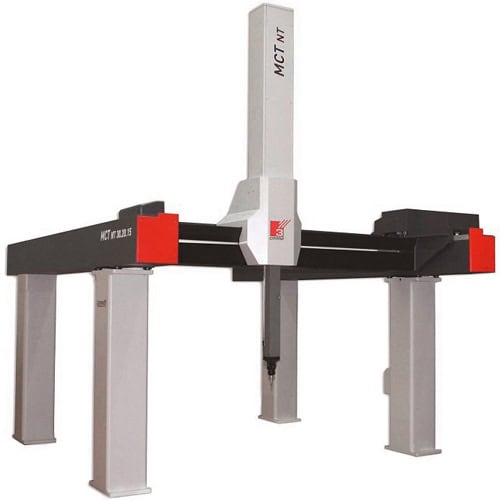

MCT - Entry level gantry CMM

The COORD3 MCT series offers an entry level Gantry CMM measuring system to accommodate the average large part inspection requirements.

The MCT is characterized by supreme mechanical design and stability ensuring long term accuracy. MCT is a blend of the most advanced technology, design (FEM analysis), material selection and experience gained from pioneering the dimensional inspection of large parts and combine to provide an outstanding customer price/performance ratio.

Available in Gantry bridge widths of 2000mm and 2500mm the MCT is the ideal production shop CMM and is available in two accuracy classes. The MCT can be equipped with all Renishaw touch/scanning probes and Perceptron laser scanning probes systems including the REVO 5 axis scanning head.

  • Ultra rigid alloy CMM platform provides maximum stiffness for scanning applications
  • Rapid thermal diffusion by CMM frame when environment conditions change
  • FEA designed anti-deformation bridge beam provides optimum moment of inertia for minimum deflection when operating at high accelerations
  • Monolithic base option available on smaller models
  • Rigid air bearings to all axes with wide bearing spread ratios
  • 0.1 micron resolution measuring scales incorporating dynamic signal processing
  • Full digital motion control with probe path blending for optimized CMM performance
  • Zero hysteresis drives to all axes
  • Unique Y axis beam mounting design offering stress free thermal stability
  • Large cross-section and rigid Z axis column
  • Open access to CMM measuring area from all sides
  • Maximum Positioning Speed 500mm/sec Maximum Acceleration 1200mm/sec2
MCT NT Model Enhanced Features
  • Silicon Carbide Z axis column enhancing further CMM stiffness
  • 0.1 micron resolution measuring scales
  • Dual scales on longitudinal X axis
  • Wireless dynamic thermal compensation system including part sensor

The following MCT Gantry CMM cross section sizes are available:

20.10 | 20.15 | 25.15 | 25.18

Accuracy from 4.3 + L/250

COORD3 MCT Gantry CMMs are available
with the following measuring strokes:

  • 30.20.10 | 40.20.10
  • 30.20.15 | 40.20.15 | 50.20.15
  • 40.25.15 | 50.25.15 | 60.25.15
  • 40.25.18 | 50.25.18 | 60.25.18

Note: Additional X lengths up to 20m available upon request.

Coord3 can supply 5000mm Y bridge width Gantry CMM by special order.

Enviroment
  • Nominal Temperature 20 °C
  • Allowable Temperature Range: 18 – 22 °C
  • Temperature Gradient: 0.5° C/hour – 2° C/day – 0.5° C/meter
  • Extended Temperature Range: 16 – 26 °C
  • Operating Temperature Range: 15 – 35 °C
  • Relative Humidity 40 – 80% (non condensating)
  • Acceptable Vibrations: 30mm/ sec2 1-10Hz | 15mm/ sec2 10-20Hz | 50mm/ sec2 20-100Hz
Services
  • Minimum Air Supply 5.5 Bar (80PSI)
  • Air Consumption 150Nl/min
  • Power Supply Voltage 230v 50Hz or 110v 60Hz (+/- 2% single phase)
  • Maximum Power Consumption 10A 1400W
MCT NT Model Enhanced Features

All COORD3 CMM products are evaluated for accuracy using the ISO10360 standard.

  • Laser Scanning Sensor
  • Dynamic Wireless Thermal Compensation of Machine and Part
  • Monolithic Base
  • Bellows Covers to X & Y axes
  • Air Drier
  • Modular Part Fixturing Kits
  • CMM Touch Station
  • CMM Modular Enclosure
gantry cmm mct sl

CMM Πυλώνων

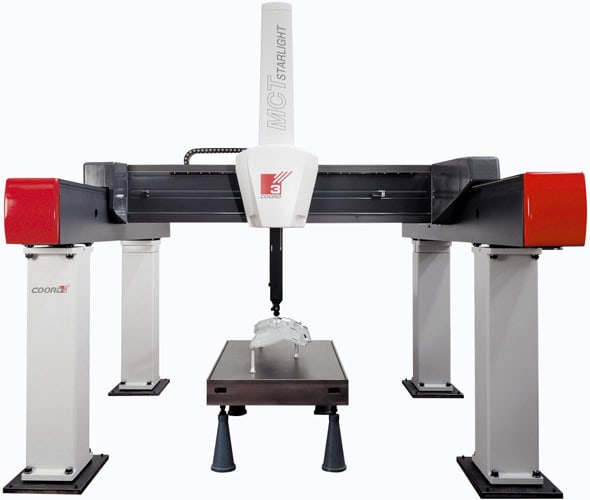

MCT SL- Medium/Large Gantry CMM

The COORD3 MCT-SL offers a range of medium-to-large Gantry CMMs notable for excellent structural stability and flexibility that can be configured according to the requirements of each specific measuring applications. Available is a wide range of sizes and up to 20 meters in length and beyond for advanced aerostructure applications. A MCT-SL Gantry can be supplied with the Renishaw 5 axis technology making it the most productive Gantry CMM available.

Gantry bridge widths of 2000, 2500mm and 3000mm and up to 2000mm in Z axis measuring range the MCT-SL is the ideal production shop CMM and is available in two accuracy classes. The NT version having Silicon Carbide Z axis offering increased stiffness for high accuracy scanning applications.

  • Ultra rigid alloy CMM platform provides maximum stiffness for scanning applications
  • Rapid thermal diffusion by CMM frame when environment conditions change
  • FEA designed anti-deformation bridge beam provides optimum moment of inertia for minimum deflection when operating at high accelerations
  • Monolithic base option available on smaller models
  • Rigid air bearings to all axes with wide bearing spread ratios
  • 0.1 micron resolution measuring scales incorporating dynamic signal processing
  • Full digital motion control with probe path blending for optimized CMM performance
  • Zero hysteresis drives to all axes
  • Unique Y axis beam mounting design offering stress free thermal stability
  • Large cross-section and rigid Z axis column
  • Open access to CMM measuring area from all sides
  • Maximum Positioning Speed 500mm/sec Maximum Acceleration 1200mm/sec2
MCT NT Model Enhanced Features
  • Silicon Carbide Z axis column enhancing further CMM stiffness
  • 0.1 micron resolution measuring scales
  • Dual scales on longitudinal X axis
  • Wireless dynamic thermal compensation system including part sensor

The following MCT SL Gantry CMM models sizes are available:

20.20 | 25.18 | 25.20 | 30.20

Accuracy from 5 + 6L/1000

COORD3 MCT Gantry CMMs are available
with the following measuring strokes:

  • 30.20.10 | 40.20.10
  • 30.20.15 | 40.20.15 | 50.20.15
  • 40.25.15 | 50.25.15 | 60.25.15
  • 40.25.18 | 50.25.18 | 60.25.18

Note: Additional X lengths up to 20m available upon request.

Coord3 can supply 5000mm Y bridge width Gantry CMM by special order.

Enviroment
  • Nominal Temperature 20 °C
  • Allowable Temperature Range: 18 – 22 °C
  • Temperature Gradient: 0.5° C/hour – 2° C/day – 0.5° C/meter
  • Extended Temperature Range: 16 – 26 °C
  • Operating Temperature Range: 15 – 35 °C
  • Relative Humidity 40 – 80% (non condensating)
  • Acceptable Vibrations: 30mm/ sec2 1-10Hz | 15mm/ sec2 10-20Hz | 50mm/ sec2 20-100Hz
Services
  • Minimum Air Supply 5.5 Bar (80PSI)
  • Air Consumption 150Nl/min
  • Power Supply Voltage 230v 50Hz or 110v 60Hz (+/- 2% single phase)
  • Maximum Power Consumption 10A 1400W
MCT NT Model Enhanced Features

All COORD3 CMM products are evaluated for accuracy using the ISO10360 standard.

  • Laser Scanning Sensor
  • Dynamic Wireless Thermal Compensation of Machine and Part
  • Monolithic Base
  • Bellows Covers to X & Y axes
  • Air Drier
  • Modular Part Fixturing Kits
  • CMM Touch Station
  • CMM Modular Enclosure
gantry cmm extra large mct plus

CMM Πυλώνων

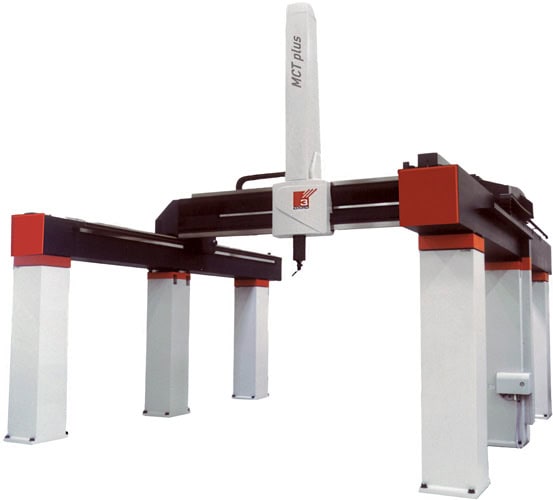

MCT Plus - Extra Large Gantry CMM

The COORD3 MCT PLUS is a large-scale Gantry CMM created for industrial shop floor environments. Its special structure and ‘Dual Drive’ and ‘Dual Scale’ system on the longitudinal axis avoids structural distortion during motion guaranteeing metrological performance to the highest standards in its class.

‘MCT PLUS’ gantry systems excel when inspecting large-scale components, such as marine engines and transmissions, aeronautical structures, rotors and components for nuclear and thermal power plants and wind turbines, as well as applications that require the use of open access. COORD3 Gantry CMM solutions can be custom designed to exactly match customer application requirements

  • Ultra rigid alloy CMM platform provides maximum stiffness for scanning applications
  • Rapid thermal diffusion by CMM frame when environment conditions change
  • FEA designed anti-deformation bridge beam provides optimum moment of inertia for minimum deflection when operating at high accelerations
  • Dual Drive – Dual Scale on X axis for enhanced performance
  • Rigid air bearings to all axes with wide bearing spread ratios
  • 0.1 micron resolution measuring scales incorporating dynamic signal processing
  • Full digital motion control with probe path blending for optimized CMM performance
  • Zero hysteresis drives to all axes
  • Unique Y axis beam mounting design offering stress free thermal stability
  • Large cross-section and rigid Z axis column
  • Open access to CMM measuring area from all sides
  • Maximum Positioning Speed 500mm/sec Maximum Acceleration 1200mm/sec2

Available with Gantry bridge widths of 2500, 3000mm and 3500mm as standard and up to 5000mm upon request with standard Z measuring range of up to 2500mm the MCT PLUS is the ultimate large volume Gantry CMM with dual drive and dual measuring scales on the X axis.

The following MCT Plus Gantry CMM models sizes are available:

25.20 | 30.20 | 30.25 | 35.25 | 50.30

Accuracy from 7 + 8L/1000

COORD3 MCT Gantry CMMs are available
with the following measuring strokes:

  • 50.25.20 | 60.25.20
  • 60.30.20 | 70.30.20 | 80.30.20 |
  • 60.30.25 | 70.30.25 | 80.30.25 |
  • 60.35.25 | 70.35.25 | 80.35.25

Note: Additional X lengths up to 20m available upon request.

Coord3 can supply 5000mm Y bridge width Gantry CMM by special order.

Enviroment
  • Nominal Temperature 20 °C
  • Allowable Temperature Range: 18 – 22 °C
  • Temperature Gradient: 0.5° C/hour – 2° C/day – 0.5° C/meter
  • Extended Temperature Range: 16 – 26 °C
  • Operating Temperature Range: 15 – 35 °C
  • Relative Humidity 40 – 80% (non condensating)
  • Acceptable Vibrations: 30mm/ sec2 1-10Hz | 15mm/ sec2 10-20Hz | 50mm/ sec2 20-100Hz
Services
  • Minimum Air Supply 5.5 Bar (80PSI)
  • Air Consumption 150Nl/min
  • Power Supply Voltage 230v 50Hz or 110v 60Hz (+/- 2% single phase)
  • Maximum Power Consumption 10A 1400W
MCT NT Model Enhanced Features

All COORD3 CMM products are evaluated for accuracy using the ISO10360 standard.

  • Laser Scanning Sensor
  • Dynamic Wireless Thermal Compensation of Machine and Part
  • Monolithic Base
  • Bellows Covers to X & Y axes
  • Air Drier
  • Modular Part Fixturing Kits
  • CMM Touch Station
  • CMM Modular Enclosure
