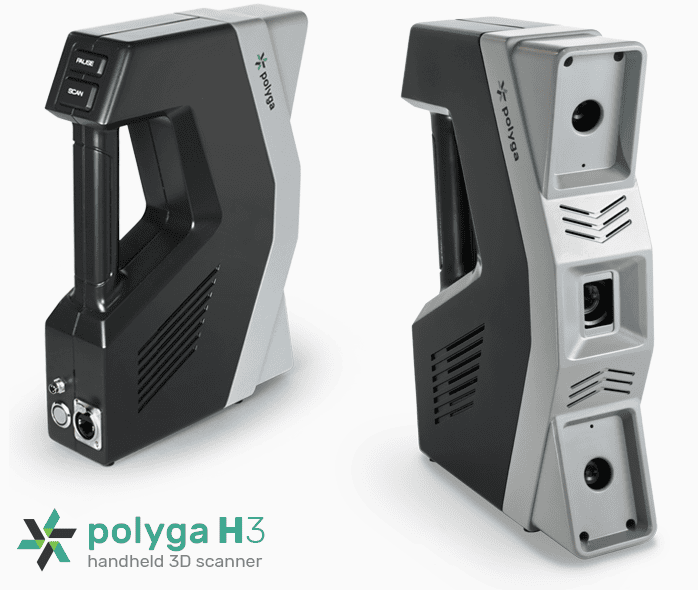

Polyga H3 3D Scanners

Handheld 3D Scanner

The Polyga H3 is simply an all-round professional handheld 3D scanner that’s easy to use, portable, and high-accuracy—all at an affordable price.

Polyga H3 3D Scanner

The Polyga H3 is simply an all-round professional handheld 3D scanner that’s easy to use, portable, and high-accuracy—all at an affordable price.

Product Description

  • Type: Professional handheld 3D scanner
  • Dimension (mm): 280 x 200 x 60
  • Cameras (frames per second): 2 x 700 FPS, monochrome or color option
  • Software: Flexscan3D for 3D capturing and post-processing
  • Technology: Structured-light, proprietary multi-imaging pattern for 3D capture
  • Modes (2-in-1): Handheld mode, stationary mode (mounted on a tripod)

Technical Specifications

  • Field of view (mm): 300 x 180 to 500 x 310
  • Point-to-point distance (mm): 0.5 or better
  • Accuracy: Up to 80 microns (0.08 mm)
H3 Handheld 3d scanner

Best In Class Handheld 3D Scanner

Finally, a handheld 3D scanner that delivers high-quality scans comparable to what you can get from stationary 3D scanners.

Now it’s even easier to digitize objects or parts with Polyga’s H3 professional handheld 3D scanner. Leveraging the technology and experience in developing our stationary 3D scanning systems that’s more than 10 years in the making, the H3 produces one of the highest accuracy in a single-shot scan for a handheld system in its class.

Get the best value in a professional handheld 3D scanner with the quality and price you can’t find anywhere else.

Versatility At Its Core

Powered by duo industrial-grade cameras at an ultra-high speed of 700 frames per second, the Polyga H3 handheld 3D scanner captures objects into complete digital 3D models in minutes. Scan a variety of objects from artifacts, mechanical parts, faces, and even the entire body for work applications in industries including manufacturing, arts, archaeology, medical, computer vision, research, and design. You have the power to accomplish your scanning projects in less time.

Polyga H3 Scans Objects into Digital 3D Models from 10 cm to 1.8 m in Length

h3 hand with parts graphic

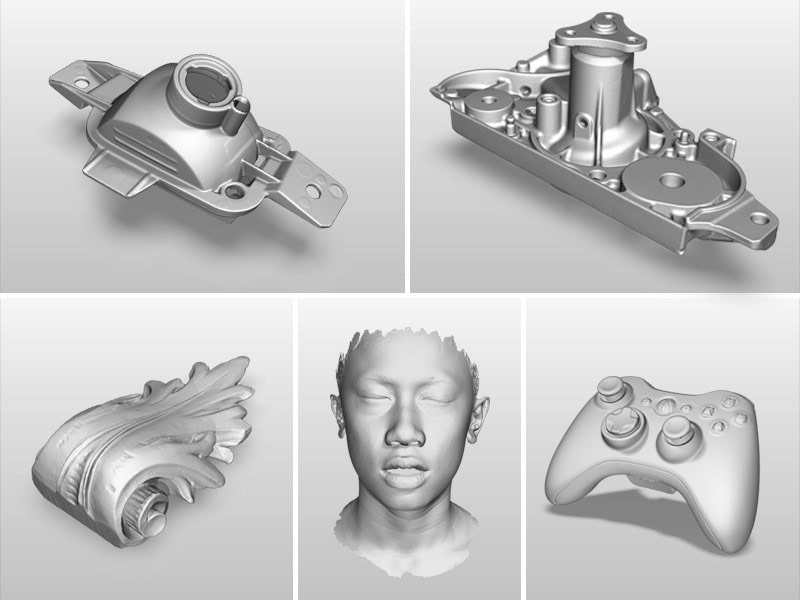

h3 scan samples

Reasons You’ll Love the H3

graphic icon handheld

Handheld

The H3 is a point and shoot system. Move around the physical object to capture it into digital form. It’s convenient to use and super portable to take on off-site projects.

graphic icon accuracy

High-Accuracy

The H3 handheld 3D scanner produces up to 1.5 million points per scan with an accuracy of up to 80 microns (0.08 mm) per scan.

graphic icon handheld 2 in 1

Hybrid

The H3 pushes the boundaries of what it truly means to be a hybrid system. It captures extremely high-accuracy data in a single scan in both handheld and stationary modes.

Achieve Better Results

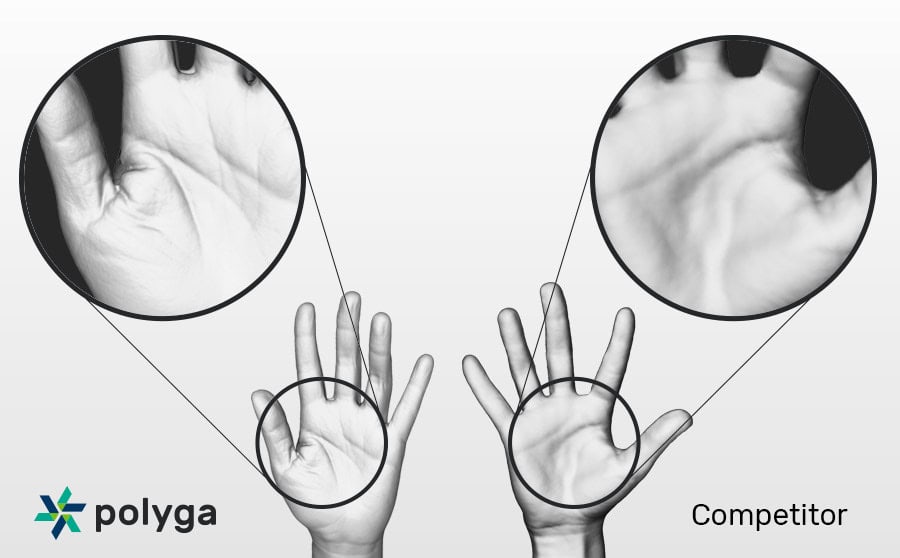

h3 scan comparison competitor

The H3 uses the same 3D scanning technology as all of Polyga’s stationary 3D scanners known for capturing high-resolution, high-accuracy 3D scans. The H3 uses proprietary multi-image scanning patterns to capture 3D scans while most other handheld 3D scanners use only a single imaging pattern. That’s why you can see the quality difference when the H3 single 3D scan is compared to other systems in its class. You can see the difference.

h3 built for agility

Built For Agility

Built For Agility Software greatly contributes to the overall user experience. The H3 is powered by FlexScan3D 3D scanning engine that powers all Polyga stationary 3D scanners. The software also works seamlessly with the H3. FlexScan3D’s high-processing speed from capture to post-processing delivers a truly responsive, seamless 3D scanning experience.

Hands-Free Mode

The H3 is a flexible system that can transform into a plug and play stationary 3D scanner. Simply mount the scanner on a tripod and use a optional rotary table for automated 3D scanning. It’s completely handsfree and there’s no need for calibration. Set up the scanner and let the system do all the work for you. The Polyga H3 pushes the boundaries of what it truly means to be a hybrid 3D scanner. You get even better quality scans in a single scan by converting the H3 into stationary mode compared to handheld mode.

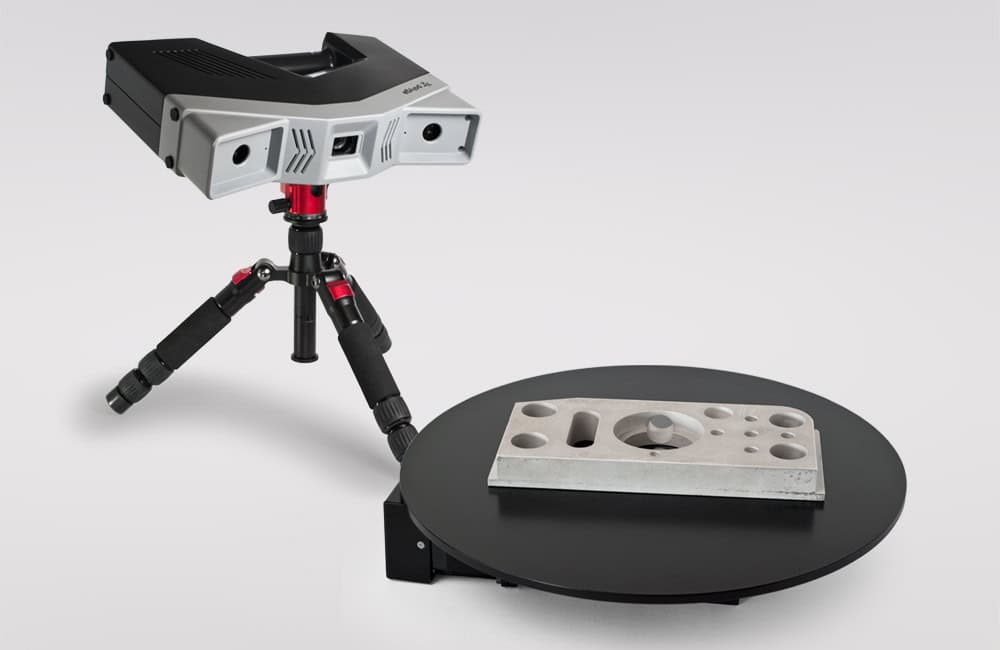

h3 with tripod rotary table
h3 color scan samples

Amazing Color

The Polyga H3 also comes as a color option which is extremely valuable for applications where capturing high-quality color and texture information is important.

Applications where color scans are useful include:

Visual effects and gaming for 3D modeling
3D inspection where color correctness of a product is important
3D printing objects in color
Documenting and archiving objects in color
Capturing design intent of an object for reverse engineering where color information in crucial to the design

Results You Can Trust

The Polyga H3 handheld 3D scanner gets the tiniest of details, even wrinkles on a jacket, to ensure your digital 3D models are captured in the true likeness of the real-world object.

comparison h3 real object comparison h3 scan data
handheld 3d scanner

Starting at

$9,990

Collect up to 1.5 million points per second
Accuracy up to 0.08 mm
Delivers extremely high-accuracy in a single shot for a handheld 3D scanner

Order Now
