Structured light 3D Scanner

Range Vision PRO

The family of professional RangeVision 3D scanners guarantees a unique price to performance ratio. Most of the 3D scanners available on the current market are targeted at scanning objects of specific size and dimensions. Professional RangeVision 3D scanners have revolutionized the 3D scanning scenario – they are capable of scanning objects of different shapes and sizes simply by changing the scanner’s field of view (FOV).

Due to the use of the structured light technology, professional RangeVision 3D scanners provide highly detailed scans of any type of object, from jewellery to large automobiles, with accuracy up to 0.018 mm and resolution up to 0.03 mm.

structured light 3d scanner

Advantages

Wide range of applications

Flexibility of RangeVision 3D scanner enables you to receive scans with high resolution of small and large objects and apply it in a wide range of contexts.

Great price/quality ratio

RangeVision 3D scanner ensures excellent performance at the price much lower than of systems with comparable characteristics.

Blue light technology

The blue light technology allows to reduce influence of external illumination while scanning and allows to achieve maximum accuracy.


Standard Package

Includes the following:

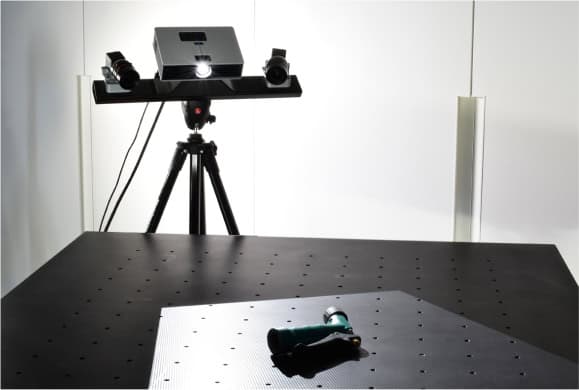

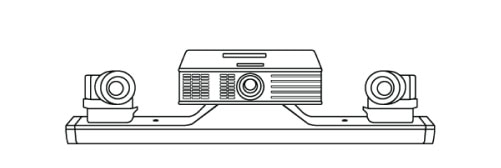

  • The scanning module
  • Two cameras (2 or 5 mpx. each)
  • Selected set of scanning zones (a set of lenses + calibration panels)
  • A hard plastic box with a lodgment
  • A tripod
  • Digital license key
  • Set of self-adhesive markers
RangeVision-Pro-box

The family of professional RangeVision 3D scanners is presented with two models. The superior calibration used in each model makes sure that the scans are producing excellent results. The models differ in the type of cameras.

 Scanning zones [1] [2] [3] [4]
Field of View (H*W*L)(mm) 460*345*345 300*225*225 133*100*100 66*50*50
3D point accuracy(mm) 0.06 0.03 0.018 0.018
3D resolution PRO 2M(mm) 0.19 0.12 0.06 0.03
3D resolution PRO 5M(mm) 0.15 0.1 0.04
Working distance(mm) 900 520 350 350
Model PRO 2M PRO 5M
Cameras (sensors) 2 MPix, 1/1.8″ 5 Mpix, 1/1.8″
3D resolution 0.19 – 0.03 mm 0.15 – 0.04 mm
Scan speed ~ 8 sec ~ 9 sec
Projector Full HD Full HD
3d scanner carry case
Protective travel case

All professional 3D RangeVision scanners are supplied in a stable plastic box, that is indispensable to store and easy transportation of your 3D equipment to the site. Getting a protective travel case option, you will receive a truly portable 3D scanning solution with excellent shock resistance.

Additional license key
Additional license key

In the case of a large amount of work, the workflow can be splitted between two operators: one scans and the other works with a scanned data. This approach allows you to significantly speed up the process.

Automatic turntable TL
Automatic turntable TL

Automated 360 degree scanning with any of the turntable system developed by RangeVision will make the scanning process faster and easier. Reinforced TL is intended for different-sized objects weighing up to 50 kg.

Automatic turntable TS
Automatic turntable TS
Compact and light weight model TS is perfect solution for scanning small and medium-sized objects weighing up to 5 kg.

System requirements

Operation system
Windows 7/8/10 64bit
CPU
Intel Core i3/i5 1.8 GHz or better
Graphics hardware
Video card Geforce 600 series or better
RAM
At least 8 GB
Other
USB 3.0 port
Dimensions of scanning unit (WxHxL)
408х350х125 mm
Output format
STL, OBJ, PLY
Scanning principle
Structured light
Weight
6.5 kg
Power
100 - 230 V
Average calibration time
10 min
rangevision-3d-processing-software

Software

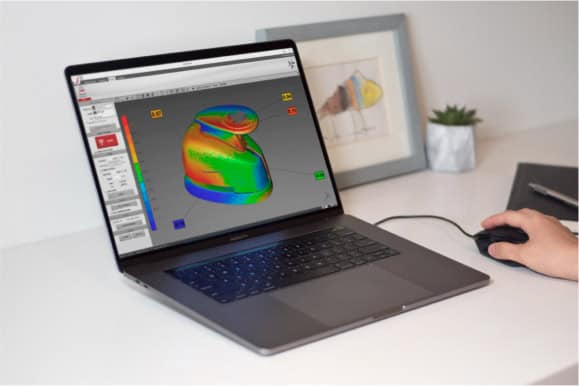

The RangeVision software, specially designed for fast processing of scan results, comes with a 3D scanner. At the end of the scan, the RangeVision software will help you optimize the resulting 3D model with automated functions: stitching fragments, filling voids, aligning the 3D model. As a result, you get a high-precision 3D copy of the object.

STL output data format is suitable for working with 3D models in all popular CAD / CAM programs: Solidworks, Autocad and others, as well as virtual modelling environments: 3Ds Max, Maya, Rhinoceros. Free software updates are always included in the cost of the 3D scanner.

Learn More

Applications

Production

Quality control

Reverse engineering

Design and architectural

Jewellery

Education
