zephir blueHD
External connector for a full versatility
Renishaw connector
Blue laser
Probe attachment
LED for field visualization

Zephyr II Blue

The best for reflective surfaces

icon quality zephyrblue

Designed for demanding applications, the Zephyr II Blue 3D scanner performs accurate and fast measurements. The blue laser is optimized for reflective surfaces or even dark parts. 3D scanners Zephyr II can be integrated on any system: measuring arm, CMM, or even robot.

Laser color ZII

Zephyr II with a red laser is a slightly less accurate version, offering even more advanced speed due to its larger laser line.

Speed

250,000 pts/sec

Accuracy

10μm

Max laser line width

70mm

FEATURES

  • Main market arms compatibility
  • Ready for CMM retrofit
  • Blue laser
  • Stand-alone or plug-in software
  • Auto Quality Check
  • Renishaw compatible

BENEFITS

  • Fast scanning speed
  • Easy scanning of reflective surfaces
  • Automatic settings
  • Compatible with high-resolution counting scales
  • Hard probe and touch probe

Zephyr II Blue with AirTrack Robot

AirTrack Robot is based on a laser scanner attached to a multi-axis robot wrist. With a Zephyr II Blue, it provides an accurate and reliable in line production metrology solution.

More about AirTrack Robot
AirTrack Robot

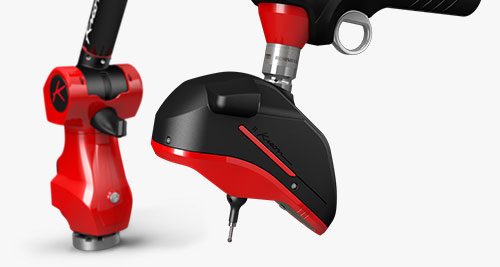

zephyr 2 blue Ace design

Ace Zephyr II Blue scanning arm

Zephyr II Blue attached to Ace arm measuring arm provides a high accuracy scanning solution. This package, fully designed for performance, is specialized in shiny part scanning. Combined with Ace arm, the scanner is housed in black and red and perfectly matches the design of the Ace in order to create a sophisticated, streamlined design.

More information

Machine specifications

Machine interface
Articulated arms, CNC, machine tools, manual and driven CMMs
Renishaw compatibility
MIH,PH10 T, PH10M/MQ Multiwire and IS1-2
Probe compatibility under the scanner
Hard probe, Renishaw TP 2/20/200
Typical probing error (MPEp)
10 µm
Multi-stylus test accuracy (MPEal)
15 µm
PC communication
USB

3D scanner specifications

Line resolution
50 µm
Stand-off distance
75 mm
Field of view
75 mm
AQC
Yes
Temperature compensation
Yes
Laser class
Blue, Class 2M
