Introducing Geomagic Control X 2018

Geomagic® Design X, the industry’s most comprehensive reverse engineering software, combines history-based CAD with 3D scan data processing so you can create feature-based, editable solid models compatible with your existing CAD software.

Measure. Understand. Communicate.

Geomagic Control X is a comprehensive metrology software platform that delivers the industry’s most powerful tools within straightforward workflows. With Geomagic Control X quality managers are enabled with revolutionary ease-of-use, intuitive, comprehensive controls and traceable, repeatable workflows for the quality measurement process. Its fast, precise, information-rich reporting and analysis enable significant productivity and quality gains in any manufacturing workflow.


With a new User Interface, innovative new metrology and inspection tools, workflow-driven, preplanned processes and casual walk-up inspection, and more, Geomagic Control X delivers an unparalleled ease-of-use and comprehension for 3D inspection in any manufacturing workflow. Now accurate measurement and fast analysis of manufactured parts and assemblies is on-hand for anyone looking to significantly build quality in manufactured parts and assemblies.

3DSystems Software Control X Inspection Scan Processing Valve 1
Frame Inspection RPS Alignment


Have the freedom to measure in any order or style you desire, while the powerful Synchronous Inspection system captures the data hierarchy and automation in the background for repeatable and editable processes. Focus on getting the results, not wasting time worrying about how to make the software work for you. Quickly conduct First Article inspections using the CAD-based dimensioning tools and have communication-ready information instantly at your fingertips. Native CAD importers including those which contain model-based GD&T definition are delivered standard at no additional cost.


Improve your ability to investigate quality issues that may appear across parts or over time through the multiple results system and Result Navigator. Identify the sources of stack-up error in weldments or assemblies by simultaneously working with many results, and derive meaningful, actionable information from the analysis. Understand potential assembled part-related issues, using portable measuring devices, optical scanners and even computed tomography by collecting families of parts or an assembly into one inspection project for easy cross part referencing. Maintain a single project for a single part which contains all measurements over time, and graphically investigate cross supplier issues.

Geomagic Control X varied custom reports web

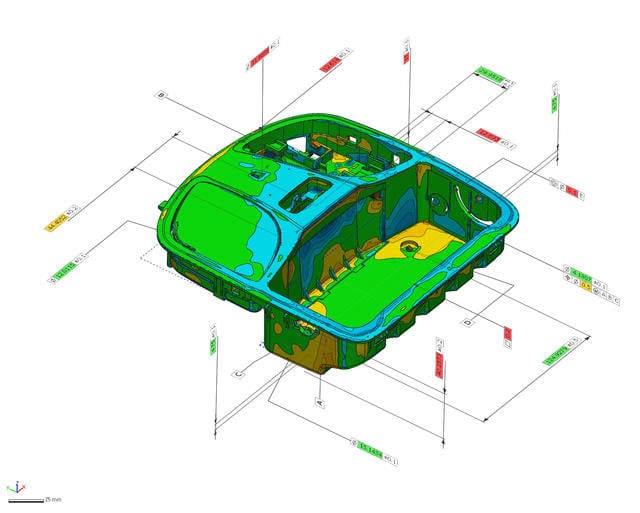

dimensioning control c geomagic metrology web


New powerful reporting features in Geomagic Control X enable graphically-rich, communicative reports. Custom viewpoint control and view-style reporting empower you to make your report more closely follow a traditional paper or pdf print graphical presentation. Brand new, intelligent 3D dimensioning and annotation management processes enable you to control in fine detail how dimensions will be displayed. You can pick from some popular default representations or create personalized and customized annotation styles to match your company standard. New, advanced report layout tools give you the flexibility to choose how reports will be configured, in the format you prefer.


NIST-PTB certified results give you the confidence to inspect rapidly with accuracy. The new features of Geomagic Control X allow you to build inspections with total accountability and traceability throughout the entire process.


3dsystems ControlX Features ScanProcessing Valve

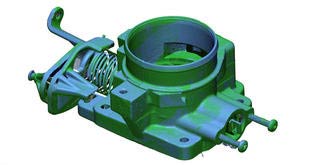

Scan Processing Automation

Scan registration, merging, clean-up, and other pre-inspection processes can now be designed and automated within Geomagic Control X.
• Implement automated processes individually, automatically, and/or in batches
• Create custom scan workflows specific to scanners or routines

3dsystems ControlX Features DeviationLocation 0

Deviation Location

With Geomagic Control X 2018 you can analyze the size, shape and location of deviation groups. This key inspection capability allows you to:
• Quickly identify and measure surface deviation, including dents, corrosion, and other types of wear
• Automatic measurements allow for quick and turn-key inspection

3dsystems ControlX Features Airfoil

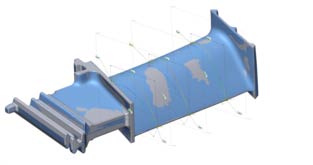

Airfoil Analysis

Whether you are working on turbines, blisks, blings or blades, Geomagic Control X 2018 provides a fast and intuitive way to gather profile measurements.
• Create profile measurements both automatically, or using custom methods
• Includes Twist Analysis

Enhanced Scanning and Import Capabilities

File import capabilities have been enhanced in Geomagic Control X 2018, providing the latest connectivity to scanning devices and improved CAD importing on even the most challenging reference models.

• New and updated integration with popular metrology devices from Faro, Hexagon, Creaform, Nikon, Solutionix, and more

• Legacy Control Files can now be imported

• Updated CAD import provides more reliable import of CAD files

• ASCII reference Geometry importer enables users to import geometry from simple text-based formats

• Improved architecture that uses up to 37% less memory when handling scan data

Geomagic Control X Part 1 350

Repeatable Probing Processes with LiveInspect™ for metrology

Geomagic Control X supports a variety of probing workflows using portable CMM devices.

  • Preplan your Inspection
    • Create detailed probing processes offline, then connect to your device and press “Play.”
  • Guided or Free Inspection
    • Measure features in any order you wish or pre-define a measurement order. Both methods provide repeatable processes.
  • Walk-up Inspection
    • No plan? No Problem. Walk-up to your device, align and measure with intuitive probing tools, and Geomagic Control X will create the plan for you afterwards.

Custom Reporting Delivers Flexibility in Inspection

Reporting has been enhanced giving users more tools to easily create inspection reports to analyze their results with:
• Data table templates allow for more flexible reporting
• Result Navigator information can be inserted into reports
• Users can now export into a 3D PDF format
• Algorithm improvements that decrease calculation times by ~33%

3dsystems controlx freatures multialignment

Multi-Alignment Inspection

The new Multi-Alignment Inspection capability allows you to create repeatable inspection routines that require measurement in different alignment environments. This is especially useful when inspecting parts that could have large deformations such as sheet metal, or long-range applications like bowed structures.
• Auto-create geometry and measure between features using different alignment schemes
• Repeatable set up allows for automated inspection of the most deformed parts such as sheet metal or plastic molded components

Easily Add Annotations In Geomagic Control X

Adding annotations in Geomagic Control X has been enhanced for more customization and freedom of choice in how annotations are shown.

Multiple Results Analysis in Inspection Drives Knowledge

Workflow-driven Processes, Walk-up Probing for Greater Productivity

CAD-aware Dimensioning, PMI Support and Comprehensive GD&T Callouts

Enhanced UI/UX

Geomagic Control X sports a fully enhanced user interface enabling even faster workflows and more efficient inspection.
• New Custom Profile feature allows users to create user-specific interfaces and settings increasing usability and simplifying interaction
• Reference Geometry can now be created and paired with contextual shortcuts enhancing no-CAD as well as general workflows
• Users have new control over dimensional annotations such as arrows and center marks
• Dimensional tolerances can be automated based on ISO-compliant parameters
