The speed of the new 3D scanner Skyline allows to digitize any part in record time. Its incredible resolution detects the smallest details of the most complex parts. Being perfectly integrated with
Ace Skyline
The best scanning arm experience
Forget all that you already know and discover the new scanning experience with the new scanning arm Kreon Ace Skyline. This new standard will quickly become the right solution for all your needs of portable contact and non-contact measurement. Accuracy, speed, flexibility… It replies to all your requirements and can scan the most challenging parts.
The new scanning arm Ace Skyline, with integrated 3D laser scanner Skyline, can be used for any application:
3D inspection, CAD comparison, reverse engineering or rapid prototyping.
The perfect companion for 3D scanning
Max Speed
600.000 pts /sec
Accuracy
15 µm
Laser line width
Up to 200 mm
Max Frequency
300 Hz
Advanced scanning speed
Gain more time and optimize your scanning process
Skyline is the only scanner on the market to combine a wide laser line (up to 200 mm), a frequency of maximum 300 lines per second and a scanning speed of 600.000 points per second. The mix of speed and wide laser line enables to decrease the number of scan passes and to digitize any part in record time.
Contact and non-contact measurement:
The Skyline scanner can be equipped with a hard probe or touch-probe. This solution enables to scan and probe in the same measuring range, proving its utility and efficiency, especially for the alignment operations.
Ace Skyline scanning arm
Modern design
Removable scanner

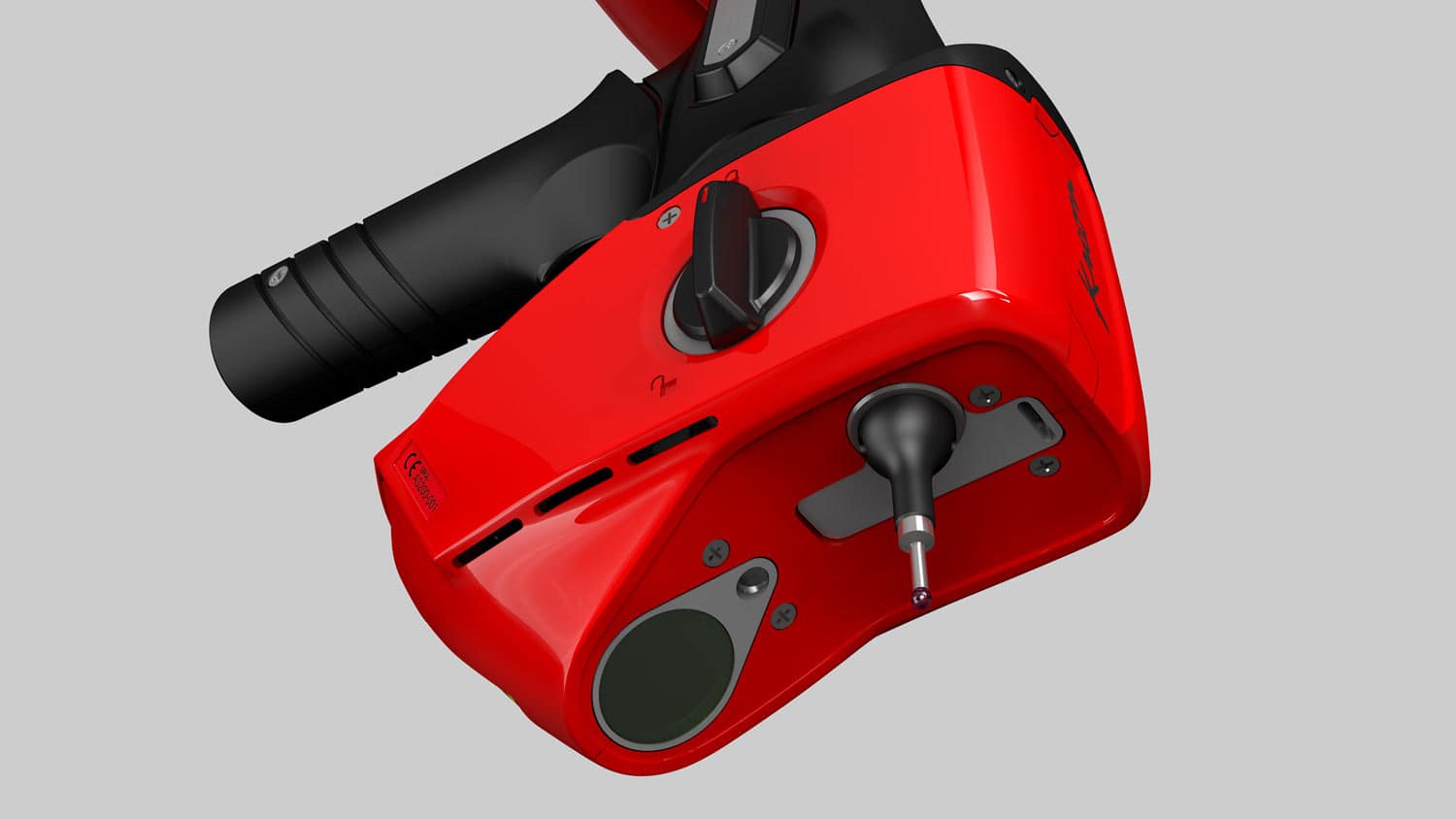

Scanner with HD camera
Ease of use
Even the less experienced users will certainly choose this easy to use scanning arm.
Skyline ergonomics was particularly studied to offer the best comfort of work: compactness and lightness (weight under 400g), LED indicator to visualize instantly and precisely the ideal scanning distance and the absence of external controller. To optimize its ease of use and to accelerate the probe mounting, this integrated scanner is also tool-free removable.
High resolution and accuracy
Digitize in 3d the exact master copy of reality
Equipped with a high definition camera and a 2.000 points laser line, Skyline produces a high-resolution point cloud and catches the smallest details. Scan processes are shorter and more efficient. Due to its 15µm accuracy, Skyline 3D scanner deals with the most challenging requirements.
Skyline integrated scanner
Advanced 3D scanner for high speed point clouds acquisition
More about Skyline scannerAce measuring arm
The ideal portable CMM for high accuracy 3D measurement
More about Ace measuring armAce Skyline specifications
Scanning performance
Probing performance
Point repeatability
Point repeatability
Probing performance
Volumetric accuracy
Volumetric accuracy
ACE-7-20
0.042mm
0.022 mm
0.032 mm
ACE-7-25
0.048 mm
0.027 mm
0.038 mm
ACE-7-30
0.061 mm
0.042 mm
0.051 mm
ACE-7-35
0.072 mm
0.054 mm
0.062 mm
ACE-7-40
0.084 mm
0.069 mm
0.074 mm
ACE-7-45
0.099 mm
0.078 mm
0.089 mm
