LED indicator to visualize precisely the ideal scanning distance
Compatible only with Ace arm
Quickly removable scanner
200mm blue laser line
Hard probe or touch-probe attachment
High resolution camera

Skyline 3D scanner

Scan wide scan fast

Skyline is the only Kreon 3D scanner completely integrated to Ace 7 axes measuring arm.

The 200mm laser line width and the speed of the Skyline 3D scanner enable to digitize any part in record time. Its high resolution detects the smallest details of the most complex parts. Being perfectly integrated with Ace measuring arm, the Skyline 3D scanner is ergonomic, perfect for scanning without efforts.

Max speed

600,000 pts/sec

Accuracy

15μm

Max laser line width

200mm

FEATURES

  • Hard probe and touch probe (TP2/TP20/TP200) integration
  • High resolution camera, 2,000 pts per laser line
  • Removable scanner
  • Led indicator for scanning distance visualization
  • Stand-alone or plug-in software
  • Auto Quality Check

BENEFITS

  • Very high scanning speed and frequency
  • Time gain due to reduced number of scan passes
  • Easy scanning of reflective surfaces
Φορητοί Μετρητικοί Βραχίονες cmm με Laser

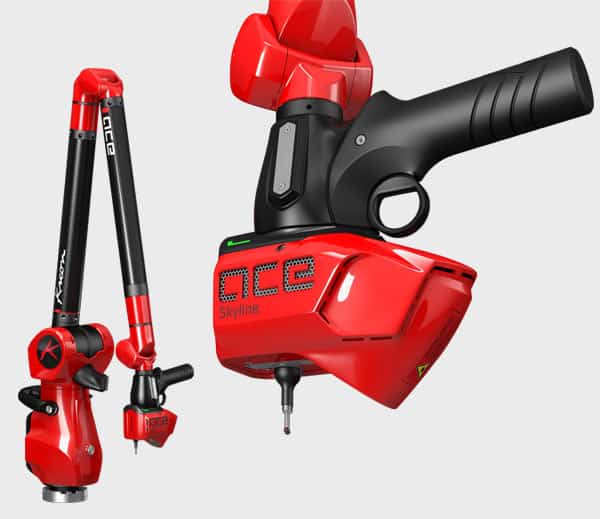

Ace Skyline scanning arm

Forget all that you already know and discover a new scanning experience with Kreon Ace Skyline scanning arm . This new standard, with a 200mm laser line width, will quickly become the right solution for all your needs.

More about Ace Skyline

Machine specifications

Machine interface
Ace articulated arms
Probe compatibility under the scanner
Hard probe, Renishaw TP 2/20/200
PC communication
Ethernet

3D scanner specifications

Line resolution
50 µm
Stand-off distance
96 mm
Field of view
130 mm
AQC
Yes
Laser class
Blue, Class 2M
