Renishaw connector
Blue laser
Probe attachment
LED for field visualization

Solano Blue 3D scanner

The precise and affordable blue laser scanner

Accurate does not mean expensive. Equipped with a blue laser, the Solano Blue 3D scanner combines precision and good quality/price ratio. Connected to any type of portable CMM without controller, you are now able to scan the most reflective parts.

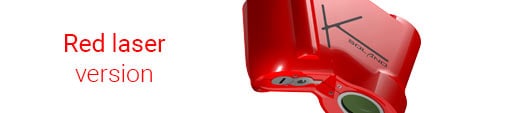

For less demanding parts or applications, Solano 3D scanner also exists in a red laser version.

Speed

50,000 pts/sec

Accuracy

25μm

Laser line width

100mm

FEATURES

  • Blue laser
  • Touch probe integration
  • Stand-alone or plug-in software
  • Auto Quality Check
  • Portable and flexible solution

BENEFITS

  • Plug-and-play
  • No controller
  • Easy to use
  • Optimized for Kreon 6- and 7-axis Ace arms

Solano Blue with AirTrack Handheld

A handheld scanning solution integrating contact and non-contact measurements.

More information
Φορητοί Μετρητικοί cmm

Solano Blue with
Ace arm

Ace Solano Blue scanning arm is a professional package well adapted for easy scanning of any industrial parts.

More information

Machine specifications

Machine interface
Articulated arms
Probe compatibility under the scanner
Hard probe, Renishaw TP 2/20/200
PC communication
Ethernet

3D scanner specifications

Line resolution
140 µm
Stand-off distance
100 mm
Field of view
100 mm
AQC
Yes
Temperature compensation
Yes
Laser class
Blue, Class 2M
